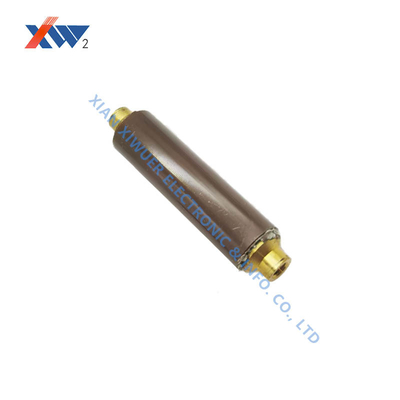

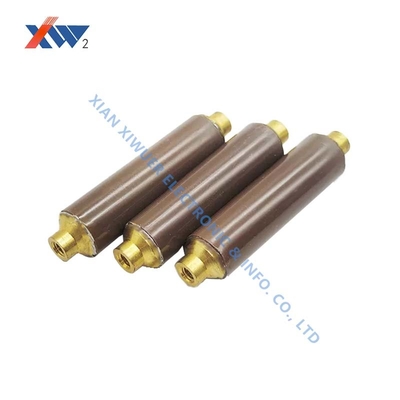

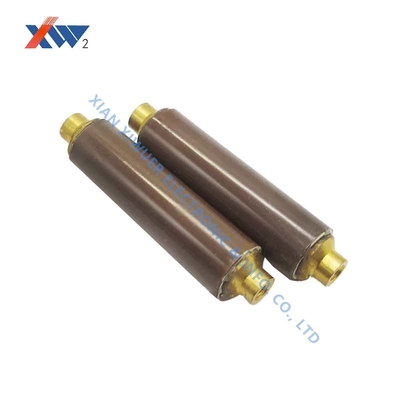

24kV 15pF High Voltage Ceramic Capacitor Core Rod

  • 24kV 15pF High Voltage Ceramic Capacitor Core Rod
  • 24kV 15pF High Voltage Ceramic Capacitor Core Rod
  • 24kV 15pF High Voltage Ceramic Capacitor Core Rod
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 24kv - 15pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 24kVAC Nominal Capacitance(pF) 15
Nominal Capacitance RangeTest Frequency1kHz+20% Test Voltage 1V+0.2V:13~17 Withstand Voltage(In The Insulating Oil) 70kVAC/5min
Partial Discharge 26.4kVAC≤10pC Lightning Impulse KV1.2/5μs 125
Highlight

24kV high voltage ceramic capacitor

,

15pF ceramic capacitor core rod

,

high voltage capacitor with core rod
Leave a Message
Product Description
High Voltage Ceramic Capacitor Core Rod 24kV 15pF
Key Specifications
  • Rated Voltage: 24kV AC
  • Nominal Capacitance: 15pF
  • Capacitance Range: 13~17pF (Test Frequency: 1kHz, Test Voltage: 1V±0.2V)
  • Withstand Voltage (in insulating oil): 70kV AC/5min
  • Partial Discharge: ≤10pC at 26.4kV AC
  • Lightning Impulse (1.2/5μs): 125kV
Application Areas
Designed for live display devices in 10kV-40.5kV power systems, this high voltage ceramic capacitor provides real-time indication of operating status for:
  • High-voltage conductors
  • Circuit breakers (SF6 and vacuum types)
  • Lightning arresters
  • Instrument transformers
Typical parameters include capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltages of 68kV (power frequency) and 125kV (lightning impulse).
Installation & Usage Instructions
Partial Discharge: ≤5pC at 1.1 times rated voltage (unless otherwise specified)
Complies with standards:
  • DL/T538-2006 (High Voltage Presence Indication Device)
  • JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)
Special Notes: Dimensions can be customized. Protect from damage, moisture, and contamination. For installations below 100 meters or in high altitude areas, please specify in order notes.
