24kV 35pF High Voltage Ceramic Capacitor Core Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 24kVAC | Nominal Capacitance(pF) | 35 |
|---|---|---|---|
| Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage | 1V+0.2V:28~42 | Withstand Voltage(In The Insulating Oil) | 70kVAC/5min |
| Partial Discharge | 26.4kVAC≤4pC | Lightning Impulse KV1.2/5μs | 125 |
| Highlight | 24kV high voltage ceramic capacitor,35pF ceramic capacitor core rod,high voltage capacitor with warranty |
||
Product Description

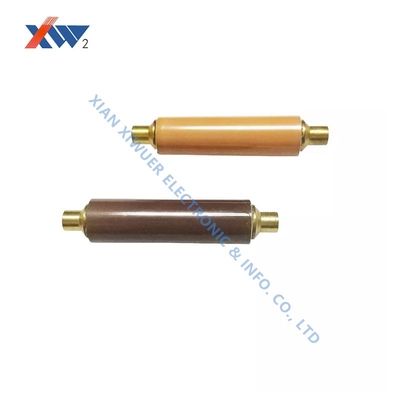

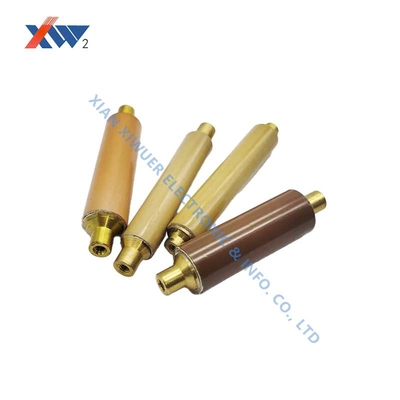

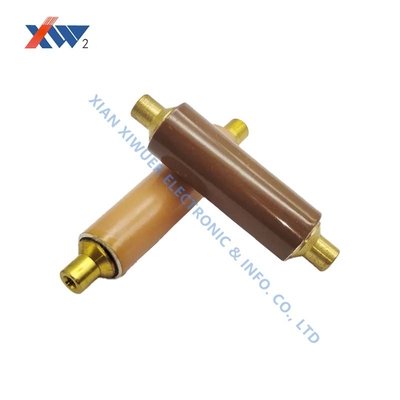

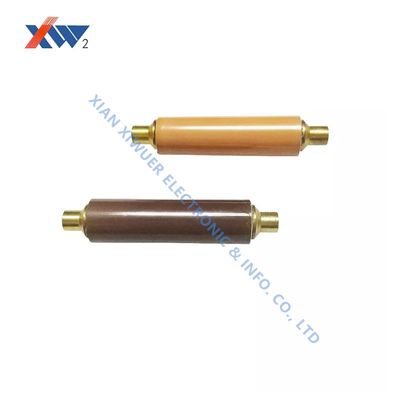

24kV 35pF High Voltage Ceramic Capacitor Core Rod
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 24kVAC |
| Nominal Capacitance (pF) | 35 |
| Nominal Capacitance Range Test Frequency: 1kHz +20% Test Voltage: 1V +0.2V |
28~42 |
| Withstand Voltage (In insulating oil) | 70kVAC/5min |
| Partial Discharge | 26.4kVAC ≤4pC |
| Lightning Impulse kV 1.2/5μs | 125 |
Key Features
- High voltage ceramic capacitor core for demanding applications
- Stable performance with precise capacitance values
- Excellent withstand voltage characteristics
- Minimal partial discharge for reliable operation
Applications
Designed for voltage display devices in 10kV to 40.5kV power systems. Provides real-time indication of operating status for:
- High voltage conductors
- Circuit breakers (SF6, vacuum types)
- Surge arresters
- Instrument transformers
Typical parameters include capacitance range of 10pF-230pF (90pF at 24kV), withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).
Important Notes
- Partial discharge (PD) ≤5pC at 1.1x rated voltage (unless otherwise specified)
- Compliant with DL/T538-2006 and JBT10305-2001 standards
- Custom dimensions available upon request
- Protect from damage, moisture, and contamination
- Specify altitude requirements (below 100m or high altitude) when ordering
Certifications
