24kV 50pF High Voltage Ceramic Capacitor Core Rod

Name: 24kV 50pF High Voltage Ceramic Capacitor Core Rod
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: 24kv 50pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	24kv 50pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

24kv 50pF

Nominal Capacitance(pF):

50pF

Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:

1V+0.2V:45~50

Withstand Voltage(In The Insulating Oil):

70kVAC/5min

Partial Discharge:

26.4kVAC≤10pC

Lightning Impulse KV1.2/5μs:

125

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

24kV High Voltage Ceramic Capacitor

50pF High Voltage Ceramic Capacitor

Core Rod High Voltage Ceramic Capacitor

Product Description

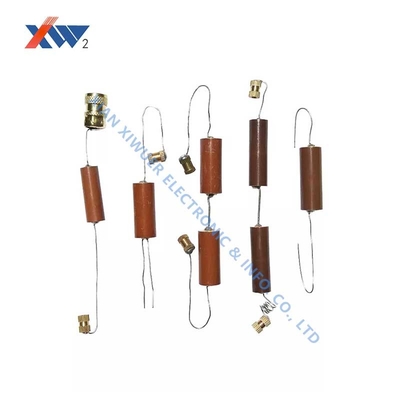

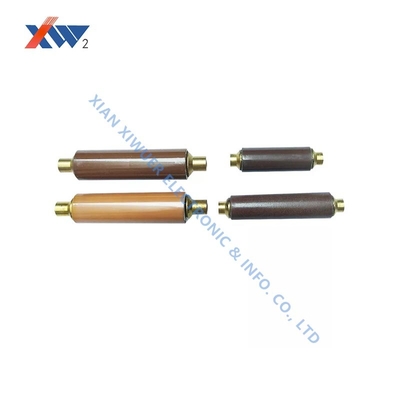

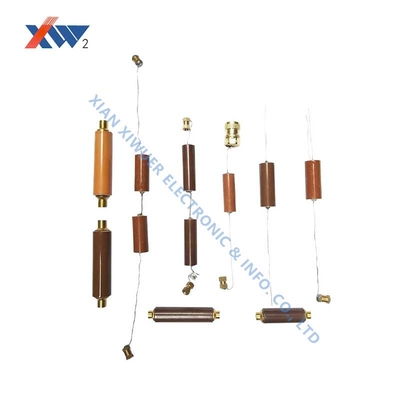

High Voltage Ceramic Capacitor Core Rod 24kV 50pF

Technical Specifications

Attribute	Value
Rated Voltage	24kV 50pF
Nominal Capacitance (pF)	50pF
Nominal Capacitance Range Test Frequency: 1kHz+20% Test Voltage	1V+0.2V:45~50
Withstand Voltage (In the insulating oil)	70kVAC/5min
Partial Discharge	26.4kVAC≤10pC
Lightning Impulse kV1.2/5μs	125

Key Features

Rated Voltage: 24kVAC
Nominal Capacitance: 50pF
Nominal Capacitance Range: 45~50 at 1kHz+20% test frequency
Withstand Voltage: 70kVAC/5min in insulating oil
Partial Discharge: ≤10pC at 26.4kVAC
Lightning Impulse: 125kV (1.2/5μs)

Application Areas

Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) are used to manufacture vacuum interrupter cavities, providing airtight sealing and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.

Live Display Device: Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, and instrument transformers, ensuring operator safety.

Typical Parameters: Capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).

Usage Instructions

Partial discharge not to exceed 5pC at 1.1 times rated voltage unless otherwise specified
Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
Custom dimensions available upon request
Protect product from damage, moisture, and contamination
Complies with standard JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)

For installations below 100 meters or in high altitude areas, please specify in order notes.
