24kV 80pF High Voltage Ceramic Capacitor Core Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 24kv 80pF | Nominal Capacitance(pF) | 80pF |
|---|---|---|---|
| Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage：1V+0.2V | 70~90 | Withstand Voltage(In The Insulating Oil) | 70kVAC/5min |
| Partial Discharge | 26.4kVAC≤10pC | Lightning Impulse KV1.2/5μs | 125 |
| Highlight | 24kV high voltage ceramic capacitor,80pF ceramic capacitor core rod,high voltage capacitor with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description

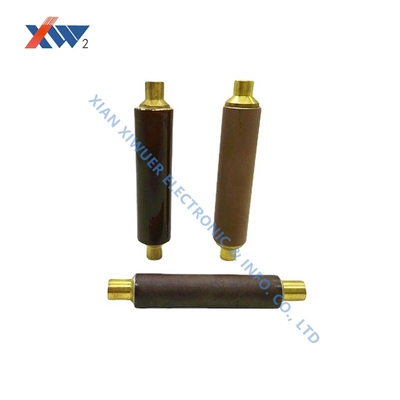

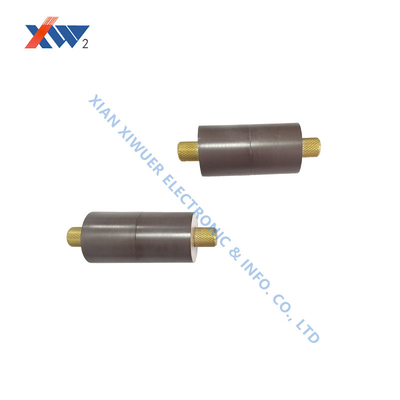

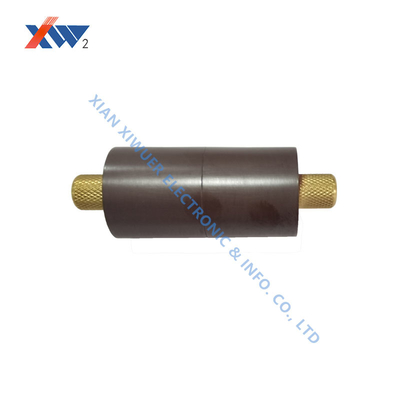

High Voltage Ceramic Capacitor Core Rod 24kV 80pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 24kV 80pF |
| Nominal Capacitance (pF) | 80pF |
| Nominal Capacitance Range Test Frequency: 1kHz ±20% Test Voltage: 1V ±0.2V |
70~90 |
| Withstand Voltage (In insulating oil) | 70kVAC/5min |
| Partial Discharge | 26.4kVAC ≤10pC |
| Lightning Impulse kV 1.2/5μs | 125 |
Key Features
- Rated Voltage: 24kVAC
- Nominal Capacitance: 80pF
- Capacitance Range: 70~90pF at 1kHz test frequency
- Withstand Voltage: 70kVAC for 5 minutes in insulating oil
- Partial Discharge: ≤10pC at 26.4kVAC
- Lightning Impulse: 125kV (1.2/5μs)
Application Areas
Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) manufacture vacuum interrupter cavities, providing airtight seals and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.
Live Display Device: Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, or instrument transformers, ensuring operator safety.
Typical Parameters: Capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).
Usage Instructions
Partial discharge should not exceed 5pC at 1.1 times rated voltage unless otherwise specified. Complies with standard DL/T538-2006 (High Voltage Presence Indication Device).
Dimensions can be customized to customer requirements. Special care must be taken to prevent product damage, moisture exposure, and contamination.
Complies with standard JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment). For installations below 100 meters or in high altitude areas, please specify in order notes.
