40.5kV High Voltage Ceramic Capacitor Core Rod 10pF Withstand Voltage 115kVAC/5min Lightning Impulse kV1.2/5μs 185

Brand Name:	XIWUER
Model Number:	40.5kv 5pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

40.5kv

Nominal Capacitance(pF):

Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:

8.5~11.5

Withstand Voltage(In The Insulating Oil):

115kVAC/5min

Partial Discharge:

44.5kVAC≤5pC

Lightning Impulse KV1.2/5μs:

185

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

Ceramic Capacitor Core Rod 10pF

Ceramic Capacitor Core Rod 115kVAC

Ceramic Capacitor Core Rod

Product Description

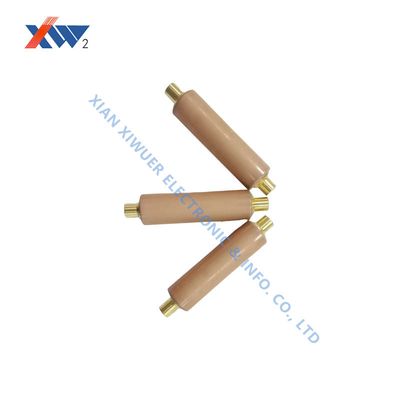

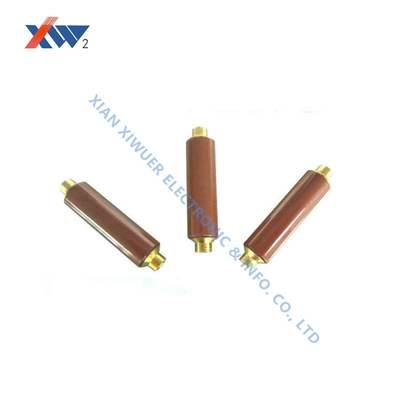

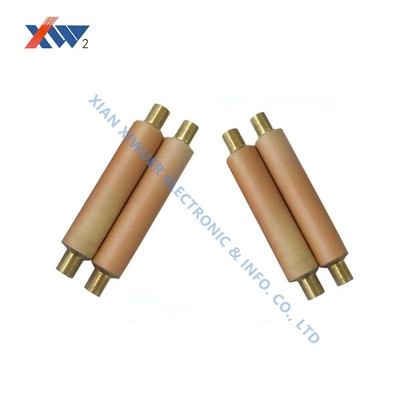

High Voltage Ceramic Capacitor Core Rod 40.5kV 10pF

Technical Specifications

Attribute	Value
Rated Voltage	40.5kV
Nominal Capacitance (pF)	10
Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V)	8.5~11.5
Withstand Voltage (In insulating oil)	115kVAC/5min
Partial Discharge	44.5kVAC ≤5pC
Lightning Impulse kV 1.2/5μs	185

Key Features

Rated Voltage: 40.5kVAC
Nominal Capacitance: 10pF
Capacitance Range: 8.5~11.5pF
Withstand Voltage: 115kVAC/5min in insulating oil
Partial Discharge: ≤5pC at 44.5kVAC
Lightning Impulse: 185kV (1.2/5μs)

Application Areas

Vacuum Interrupter (Circuit Breaker Core)

Metalized ceramic core rods (alumina-based) manufacture vacuum interrupter cavities, providing airtight seals and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.

Live Display Device

Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, and instrument transformers, ensuring operator safety.

Typical Parameters: Capacitance ranges 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).

Harsh Environment Applications

High-temperature industrial equipment: Supports and insulates electric furnaces and heaters, withstanding temperatures exceeding 1000°C without deformation.

Corrosion protection systems: Valve and pump seals in petrochemical equipment resist acid, alkali, and salt corrosion.

Medical and semiconductor equipment: Ceramic feedthroughs for implantable devices (e.g., pacemakers) and electrical signal feedthrough components in vacuum chambers for chip manufacturing.

Usage Instructions

Partial discharge ≤5pC at 1.1 times rated voltage (unless otherwise specified)
Complies with DL/T538-2006 (High Voltage Presence Indication Device)
Custom dimensions available upon request
Protect from damage, moisture, and contamination
Complies with JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)
For areas below 100 meters or high altitude areas, specify in order notes
