40.5kV High Voltage Ceramic Capacitor Core Rod 10pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 40.5kv | Nominal Capacitance(pF) | 10 |
|---|---|---|---|
| Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage1V+0.2V | 8.5~11.5 | Withstand Voltage(In The Insulating Oil) | 115kVAC/5min |
| Partial Discharge | 44.5kVAC≤5pC | Lightning Impulse KV1.2/5μs | 185 |
| Highlight | 40.5kV ceramic capacitor core rod,high voltage ceramic capacitor 10pF,ceramic capacitor core with warranty |
||
Product Description

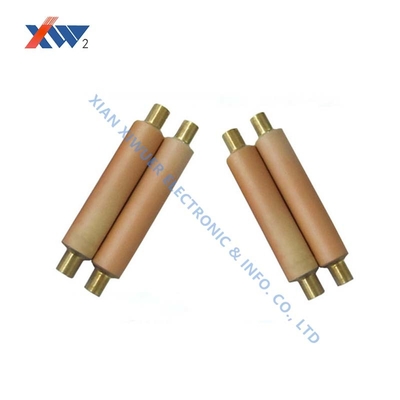

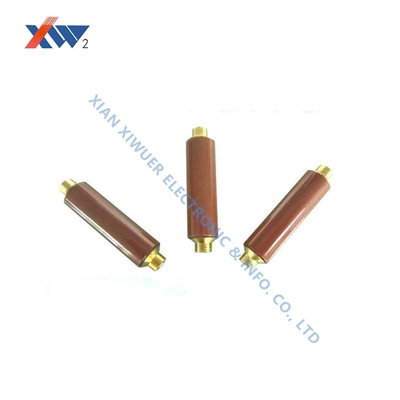

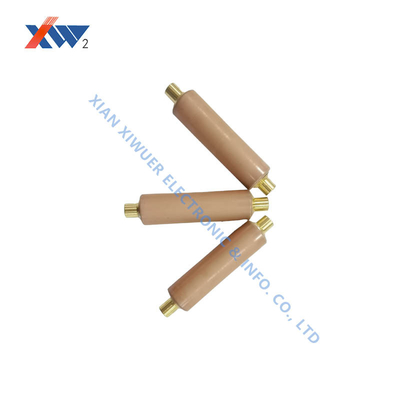

High Voltage Ceramic Capacitor Core Rod 40.5kV 10pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 40.5kV |
| Nominal Capacitance (pF) | 10 |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) | 8.5~11.5 |
| Withstand Voltage (In insulating oil) | 115kVAC/5min |
| Partial Discharge | 44.5kVAC ≤5pC |
| Lightning Impulse kV 1.2/5μs | 185 |
Key Features
- Rated Voltage: 40.5kVAC
- Nominal Capacitance: 10pF
- Capacitance Range: 8.5~11.5pF
- Withstand Voltage: 115kVAC/5min in insulating oil
- Partial Discharge: ≤5pC at 44.5kVAC
- Lightning Impulse: 185kV (1.2/5μs)
Application Areas
Vacuum Interrupter (Circuit Breaker Core)
Metalized ceramic core rods (alumina-based) manufacture vacuum interrupter cavities, providing airtight seals and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.
Live Display Device
Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, and instrument transformers, ensuring operator safety.
Typical Parameters: Capacitance ranges 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).
Harsh Environment Applications
High-temperature industrial equipment: Supports and insulates electric furnaces and heaters, withstanding temperatures exceeding 1000°C without deformation.
Corrosion protection systems: Valve and pump seals in petrochemical equipment resist acid, alkali, and salt corrosion.
Medical and semiconductor equipment: Ceramic feedthroughs for implantable devices (e.g., pacemakers) and electrical signal feedthrough components in vacuum chambers for chip manufacturing.
Usage Instructions
- Partial discharge ≤5pC at 1.1 times rated voltage (unless otherwise specified)
- Complies with DL/T538-2006 (High Voltage Presence Indication Device)
- Custom dimensions available upon request
- Protect from damage, moisture, and contamination
- Complies with JBT10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)
- For areas below 100 meters or high altitude areas, specify in order notes
