40.5kV High Voltage Ceramic Capacitor Core Rod 45pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 40.5kv | Nominal Capacitance(pF) | 45pF |
|---|---|---|---|
| Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage1V+0.2V | 40~50 | Withstand Voltage(In The Insulating Oil) | 115kVAC/5min |
| Partial Discharge | 44.5kVAC≤10pC | Lightning Impulse KV1.2/5μs | 185 |
| Highlight | 40.5kV ceramic capacitor core rod,high voltage ceramic capacitor 45pF,ceramic capacitor rod with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description

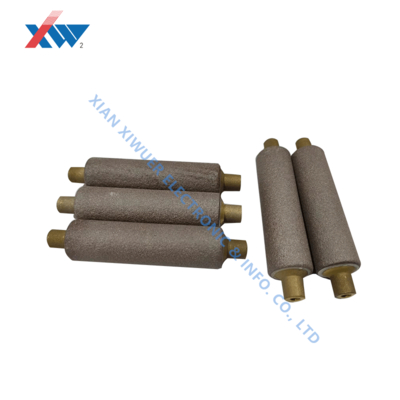

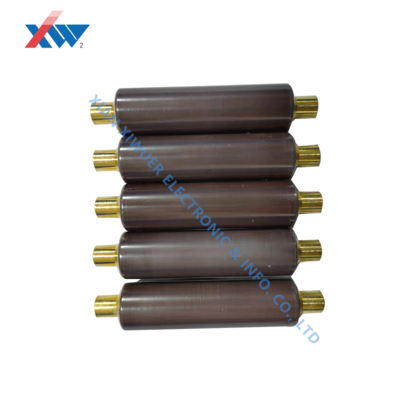

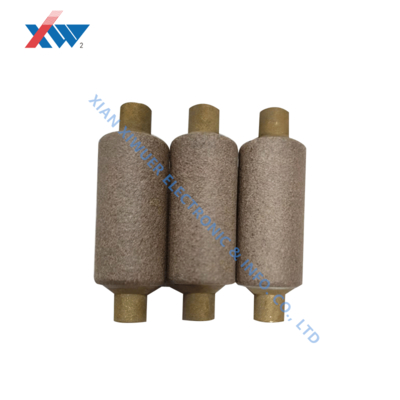

High Voltage Ceramic Capacitor Core Rod 40.5kV 45pF
Technical Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 40.5kV |
| Nominal Capacitance (pF) | 45pF |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) | 40~50 |
| Withstand Voltage (In insulating oil) | 115kVAC/5min |
| Partial Discharge | 44.5kVAC ≤10pC |
| Lightning Impulse kV 1.2/5μs | 185 |
Key Features
- Rated Voltage: 40.5kVAC
- Nominal Capacitance: 45pF
- Capacitance Range: 40~50pF at 1kHz test frequency
- Withstands 115kVAC for 5 minutes in insulating oil
- Partial discharge ≤10pC at 44.5kVAC
- Lightning impulse withstand: 185kV (1.2/5μs)
Application Areas
Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) manufacture vacuum interrupter cavities, providing airtight seals and electrical insulation for high-voltage current interruption in mining circuit breakers and generator protection systems.
Live Display Device: Used in 10kV-40.5kV power systems to indicate operating status of high-voltage conductors, circuit breakers (SF6/vacuum), lightning arresters, or instrument transformers, ensuring operator safety.
High-Temperature Industrial Equipment: Support and insulation components for electric furnaces and heaters, withstanding temperatures exceeding 1000°C without deformation.
Corrosion Protection Systems: Valve and pump seals in petrochemical equipment resistant to acid, alkali, and salt corrosion.
Medical & Semiconductor Equipment: Ceramic feedthroughs for implantable devices (pacemakers) and electrical signal feedthrough components in semiconductor vacuum chambers.
Technical Instructions
Partial discharge ≤5pC at 1.1 times rated voltage (unless otherwise specified). Complies with DL/T538-2006 (High Voltage Presence Indication Device) and JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).
Custom dimensions available upon request. Products must be protected from damage, moisture, and contamination. For installations below 100 meters or in high altitude areas, please specify in order notes.
