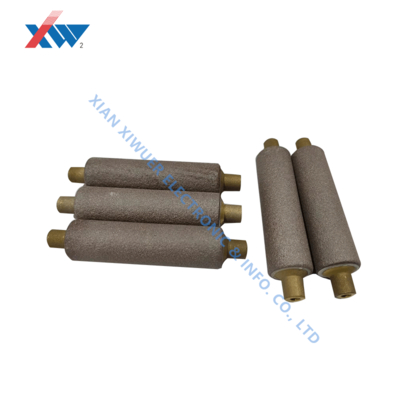

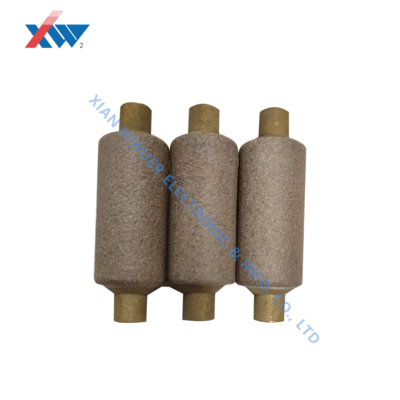

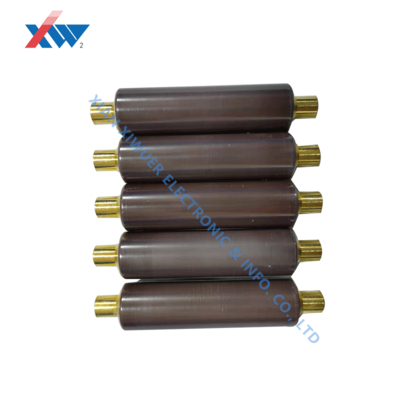

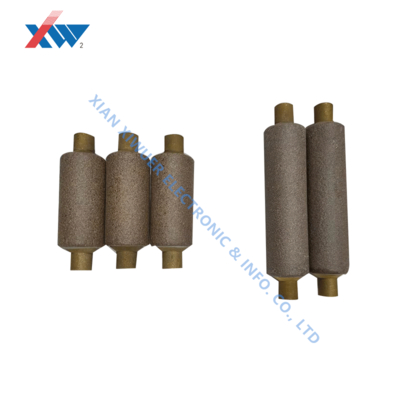

Lightning Impulse 185kV1.2/5μs High Voltage Ceramic Capacitor Core Rod 45pF

Name: Lightning Impulse 185kV1.2/5μs High Voltage Ceramic Capacitor Core Rod 45pF
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: 40.5kv 45pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	40.5kv 45pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Rated Voltage:

40.5kv

Nominal Capacitance(pF):

45pF

Nominal Capacitance RangeTest Frequency:1kHz+20%TestVoltage:1V+0.2V:

40~50

Withstand Voltage(In The Insulating Oil):

115kVAC/5min

Partial Discharge:

44.5kVAC≤10pC

Lightning Impulse KV1.2/5μs:

185

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

1.2/5μs Ceramic Capacitor

185kV Ceramic Capacitor

Lightning Impulse Ceramic Capacitor

Product Description

High Voltage Ceramic Capacitor Core Rod 40.5kV 45pF

Technical Specifications

Attribute	Value
Rated Voltage	40.5kV
Nominal Capacitance (pF)	45pF
Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V)	40~50
Withstand Voltage (In insulating oil)	115kVAC/5min
Partial Discharge	44.5kVAC ≤10pC
Lightning Impulse kV 1.2/5μs	185

Key Features

Rated Voltage: 40.5kVAC
Nominal Capacitance: 45pF
Capacitance Range: 40~50pF at 1kHz test frequency
Withstands 115kVAC for 5 minutes in insulating oil
Partial discharge ≤10pC at 44.5kVAC
Lightning impulse withstand: 185kV (1.2/5μs)

Application Areas

Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) manufacture vacuum interrupter cavities, providing airtight seals and electrical insulation for high-voltage current interruption in mining circuit breakers and generator protection systems.

Live Display Device: Used in 10kV-40.5kV power systems to indicate operating status of high-voltage conductors, circuit breakers (SF6/vacuum), lightning arresters, or instrument transformers, ensuring operator safety.

High-Temperature Industrial Equipment: Support and insulation components for electric furnaces and heaters, withstanding temperatures exceeding 1000°C without deformation.

Corrosion Protection Systems: Valve and pump seals in petrochemical equipment resistant to acid, alkali, and salt corrosion.

Medical & Semiconductor Equipment: Ceramic feedthroughs for implantable devices (pacemakers) and electrical signal feedthrough components in semiconductor vacuum chambers.

Technical Instructions

Partial discharge ≤5pC at 1.1 times rated voltage (unless otherwise specified). Complies with DL/T538-2006 (High Voltage Presence Indication Device) and JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment).

Custom dimensions available upon request. Products must be protected from damage, moisture, and contamination. For installations below 100 meters or in high altitude areas, please specify in order notes.
