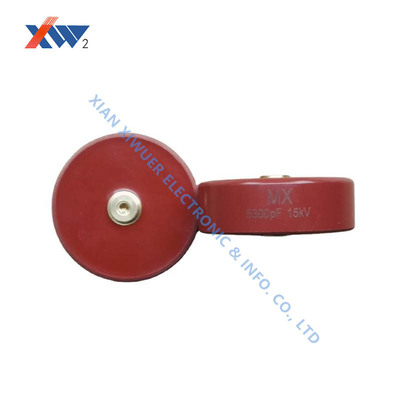

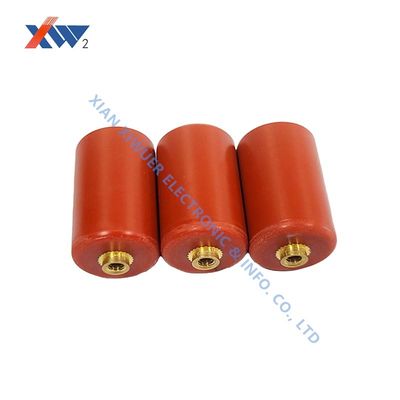

40kV 10000pF High Voltage Ceramic Capacitor 80x22mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dissipation | ≦0.0040 | Withstanding Voltage | 1.5Ur● 1min |
|---|---|---|---|
| Insulation Resistance | ≧1.0×105MΩ | Dimension(mm) | D:80 | H:22 | L:26 | D:16 | M:5 |
| Highlight | 40kV high voltage ceramic capacitor,10000pF ceramic capacitor 80x22mm,high voltage capacitor with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description

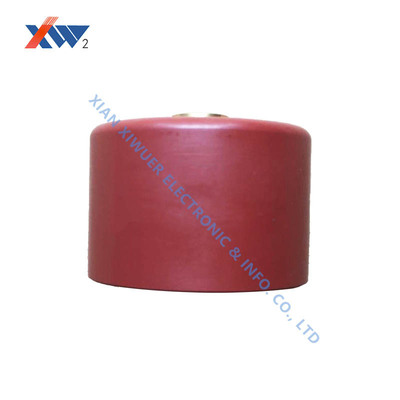

40kV 10000pF High Voltage Doorknob Capacitor
Product Overview
Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.
Key Applications
- Pulse power and laser equipment
- Medical imaging systems
- Industrial processing machinery
- Power transmission and energy infrastructure
- Scientific research and specialized industrial applications
Technical Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Selection Guidelines
High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:
- Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
- Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
- Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
- Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
