High Voltage Ceramic Capacitor 24kV 50pF with Low Dissipation Factor for High Voltage Coupling and Coaxiality < 2.0

Place of Origin	XIAN, CHINA
Brand Name	XIWUER
Certification	ISO9001,ISO14001,ISO45001
Model Number	CT8-2-24kV-50pF
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging Details	Carton
Delivery Time	5-7 days
Payment Terms	L/C,T/T
Supply Ability	8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Capacitance

10kV , 50Hz , 25℃ 50pF±20%

Dielectric Loss At 10kV And 50Hz

< 0.12 At 25°C

Working Voltage

Welding Force Test

Minimum 20N 25°C

Highlight

Coaxiality High Voltage Ceramic Capacitor

Low Dissipation Factor HV Ceramic Capacitor

High Voltage Coupling Ceramic Capacitor

Leave a Message

Product Description

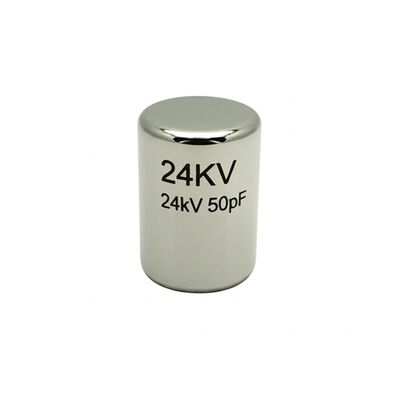

Capacitor Ceramic High Voltage CT8-2-24kV-50pF

Low Dissipation Factor High Voltage Coupling Device

HV Ceramic Capacitors CT8-2-24kV-50pF ISO Certificated For Charged Display

Key Features

Excellent performance in pulse and fast discharge applications
Low dissipation factor (0.05% low loss designs available upon request)
High coaxiality < 2.0

Applications

High-voltage columns for HV accelerator colliders
High voltage coupling devices

Dimensions

Technical Specifications

Voltage Rating	Nominal Capacitance (pF)	Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2V	Power Frequency Withstand Voltage (in the insulation oil)	Partial Discharge	Lightning Impulse (kV) (Maximum Peak Voltage) (in the insulation oil)
3.6kVac	230	210~240	32kV AC/5min	3.96kV AC≤10PC	40
7.2kVac	5	4~6	41kV AC/5min	7.92kV AC≤10PC	60
	40	36~44
	150	140~170
12kVac	5	4~6	52kV AC/5min	13.2kV AC≤10PC	75
	20	18~22
	40	36~44
	50	45~55
	125	110~140
	200	180~210
	300	270~330
24kVac	5	4~6	70kV AC/5min	26.4kV ac≤10PC	125
	15	13~17		26.4kV ac≤10PC
	35	35~42		26.4kV ac≤4PC
	50	45~50		26.4kV ac≤10PC
	80	70~90		26.4kV ac≤10PC
	150	125~180		26.4kV ac≤5PC
	200/400/500	180~220		26.4kVac≤10PC
40.5kVac	5	4~6	115kV AC/5min	44.5kV ac≤10PC	185
	10	8.5~11.5		44.5kV ac≤5PC
	45	40~50		44.5kV ac≤10PC
	100	90~110		44.5kV ac≤10PC

Manufacturer Overview

Xian Xiwuer Electronic & Info. Co., Ltd. is a leading Chinese manufacturer specializing in electronic components. With a 4,000㎡ facility in Xi'an and 2,300 employees (including 580 technicians and 135 engineers), we maintain total assets of 315 million RMB Yuan.

Our product portfolio includes:

Varistors & SPD (Surge Protective Devices)
HV Ceramic Capacitors
Capacitive Voltage Dividers
Thermistors

We operate advanced production lines with equipment imported from Japan, America, Belgium, and Switzerland. Our quality management system is certified to ISO 9001, ISO 18000, and holds CCEE, UL, VDE & TUV approvals.
