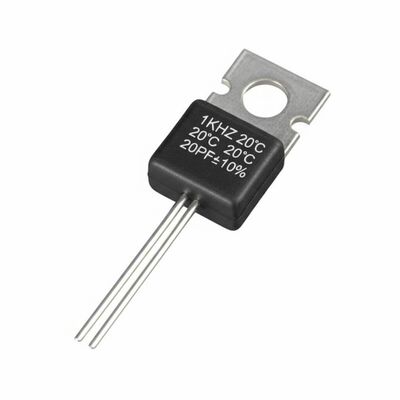

High Voltage Ceramic Capacitor 1KHZ 20℃ 20PF±10％ for Live Line Indicator and Power Distribution Systems

Place of Origin	XIAN, CHINA
Brand Name	XIWUER
Certification	ISO9001,ISO14001,ISO45001
Model Number	CT8-2- 12KV-20PF
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging Details	Carton
Delivery Time	5-7 days
Payment Terms	L/C,T/T
Supply Ability	8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Capacitance

1KHZ 20℃ 20PF±10％

Dielectric Loss At 1.0V And 1kHz

1V，1KHZ，20-25℃，＜0.4%

Nominal Working Voltage

12KV

Power Frequency Withstand Voltage

48KV · 1min

Highlight

1KHZ High Voltage Ceramic Capacitor

20℃ Ceramic Capacitor

20PF±10％ HV Ceramic Capacitor

Leave a Message

Product Description

Reliable Ceramic Capacitor 12KV 20P For Live Line Indicator High Voltage Ceramic Capacitor

High voltage presence signaling device with working frequency up to 30MHz 12KV-20PF

Features

For cryogenic quality, the temperature vs. capacitance relationship is 0.5%
Up to 30 MHz working frequency, extremely stable ultra high frequency

Applications

Power line coupling systems for Internet and telecom are available with excellent voltage characteristics
Power Distribution Systems and Surge Arresters

Dimension

Technical Specifications

Voltage Rating	Nominal Capacitance (pF)	Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2V	Power Frequency Withstand Voltage (in the insulation oil)	Partial Discharge	Lightning Impulse (kV) (Maximum Peak Voltage) (in the insulation oil)
3.6kVac	230	210~240	32kV AC/5min	3.96kV AC≤10PC	40
7.2kVac	5	4~6	41kV AC/5min	7.92kV AC≤10PC	60
7.2kVac	40	36~44	41kV AC/5min	7.92kV AC≤10PC	60
7.2kVac	150	140~170	41kV AC/5min	7.92kV AC≤10PC	60
12kVac	5	4~6	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	20	18~22	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	40	36~44	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	50	45~55	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	125	110~140	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	200	180~210	52kV AC/5min	13.2kV AC≤10PC	75
12kVac	300	270~330	52kV AC/5min	13.2kV AC≤10PC	75
24kVac	5	4~6	70kV AC/5min	26.4kV ac≤10PC	125
24kVac	15	13~17	70kV AC/5min	26.4kV ac≤10PC	125
24kVac	35	35~42	70kV AC/5min	26.4kV ac≤4PC	125
24kVac	50	45~50	70kV AC/5min	26.4kV ac≤10PC	125
24kVac	80	70~90	70kV AC/5min	26.4kV ac≤10PC	125
24kVac	150	125~180	70kV AC/5min	26.4kV ac≤5PC	125
24kVac	200/400/500	180~220	70kV AC/5min	26.4kVac≤10PC	125
40.5kVac	5	4~6	115kV AC/5min	44.5kV ac≤10PC	185
40.5kVac	10	8.5~11.5	115kV AC/5min	44.5kV ac≤5PC	185
40.5kVac	45	40~50	115kV AC/5min	44.5kV ac≤10PC	185
40.5kVac	100	90~110	115kV AC/5min	44.5kV ac≤10PC	185

Company Overview

Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city covering an area of 4000 ㎡, with 2300 employees including about 580 technicians (135 engineers and 21 senior engineers). The company has total assets of 315 million RMB Yuan and fixed assets of 137 million RMB Yuan, operating as a large enterprise mainly engaged in producing electronic components.

The company has the largest production scale of Varistor, SPD (Surge Protective Device) and HV Ceramic Capacitor in China, with the following main products:

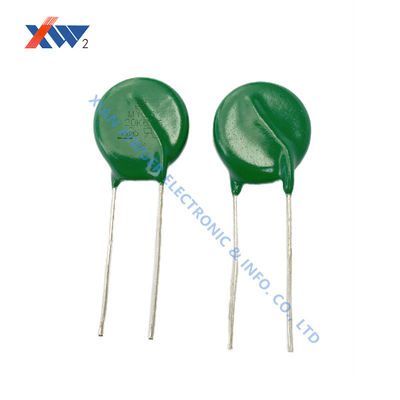

Varistors & SPD
HV Ceramic Capacitor
Capacitive Voltage Divider
Thermistor

The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland. The annual production capacity of the two leading products has reached 5 million pcs and 150 million pcs respectively, with market holding rates in China of about 10% and 30% respectively through continual technical innovation.

Varistors and SPD produced by the company enjoy great reputation in the international market, being exported to many countries and areas such as Japan, USA, Hong Kong etc., with customers including GE in USA and LG in Korea. The products are also sold to Spain and India in large quantities.

The company's product quality, technical capacity, and model completeness are all leading in China. The main products have obtained CCEE, UL, VDE & TUV approval. The quality system was established according to ISO9000 requirements since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then obtained ISO9001 certification by British organization in 2000. The company was the first in China's North-west area to receive ISO9000 certification in its occupation. The company also holds ISO18000 certification.

With excellent quality assurance capacity, technical development capacity and rich manufacturing experience, the company is able to supply satisfied goods and service to customers worldwide with competitive pricing and short delivery times.
