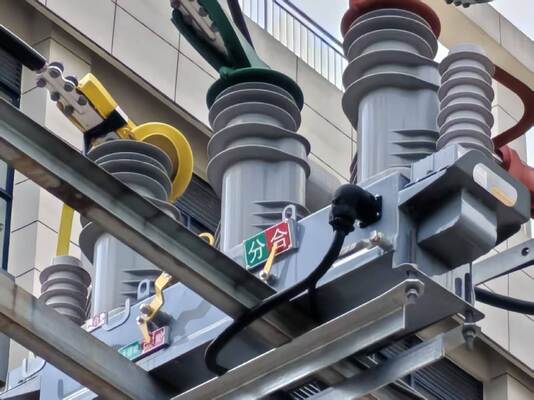

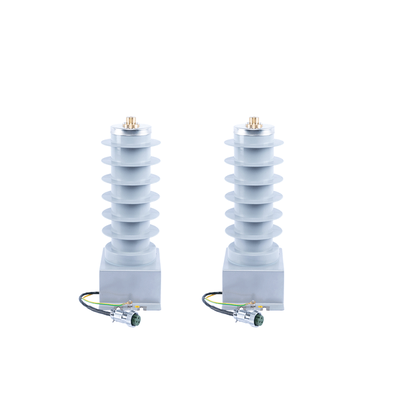

220VAC±10% Output Voltage IP67 Waterproof Ultra-Low Power Consumption (~6W) Power Supply Device for Recloser with Capacitive Voltage Extraction

  • 220VAC±10% Output Voltage IP67 Waterproof Ultra-Low Power Consumption (~6W) Power Supply Device for Recloser with Capacitive Voltage Extraction
  • 220VAC±10% Output Voltage IP67 Waterproof Ultra-Low Power Consumption (~6W) Power Supply Device for Recloser with Capacitive Voltage Extraction
Place of Origin Xian-China
Brand Name XIWUER
Certification ISO
Model Number LEDZW-12
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 1,000,000 units a year
Product Details
Highlight

220VAC±10% Output Voltage Power Supply Device

,

IP67 Waterproof Recloser Power Supply

,

Ultra-Low Power Consumption Capacitive Voltage Extraction Device
Leave a Message
Product Description
Power Supply Device for Recloser
Power Supply Device for Recloser
Electrical Performance Index
Serial Number Categories Unit Index
1 Output Voltage V 220VAC±10%
2 Output Power W 10
3 Working Temperature ºC -40~+70
4 Capacitor Dimension mm Φ129*330
5 Main Size mm 186*135*75
6 Heat Dissipation Structure - Insulating Resin Potting
7 Package Structure - Plastic & Metal Shell
8 Waterproof Level - IP67
Advantages of Our New Solution to Recloser
  • Innovative Power Sourcing: Utilizes a capacitive voltage extraction device to draw power directly from high-voltage lines, supplying stable energy to both the recloser's internal mechanism and FTU (Feeder Terminal Unit).
  • Dual-Power Assurance: Dual-supply mode ensures uninterrupted FTU operation.
  • PT Elimination: Completely replaces traditional voltage transformer (PT) power supply and its inherent flaws.
  • Ultra-Low Power Consumption: Features an energy-efficient controller, reducing operational costs (Traditional: 40-60W | New: ~6W).
  • Quick and Efficient Installation: Streamlined field deployment process.
  • Optimized Maintenance: Zero PT maintenance required, slashing long-term labor and upkeep costs.
  • Flexible Configuration:
    • As a Sectionalizer: Only 1 capacitive extraction unit needed.
    • As a Segment Switch: Only 2 capacitive extraction units needed.
  • Safety & Reliability:
    • Eliminates explosion risks entirely.
    • Sampling accuracy unaffected by ambient temperature.
