High Voltage Capacitor Power Supply

Name: High Voltage Capacitor Power Supply
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: LEDZW-12
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	LEDZW-12
MOQ:	1 unit
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1,000,000 units a year

Detail Information

Product Description

Detail Information

Place of Origin:

Xian-China

Certification:

ISO

Packaging Details:

Carton

Supply Ability:

1,000,000 units a year

Highlight:

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

IP67 Waterproof Level HV Ceramic Capacitor

Insulating Resin Potting Power Supply Device

Product Description

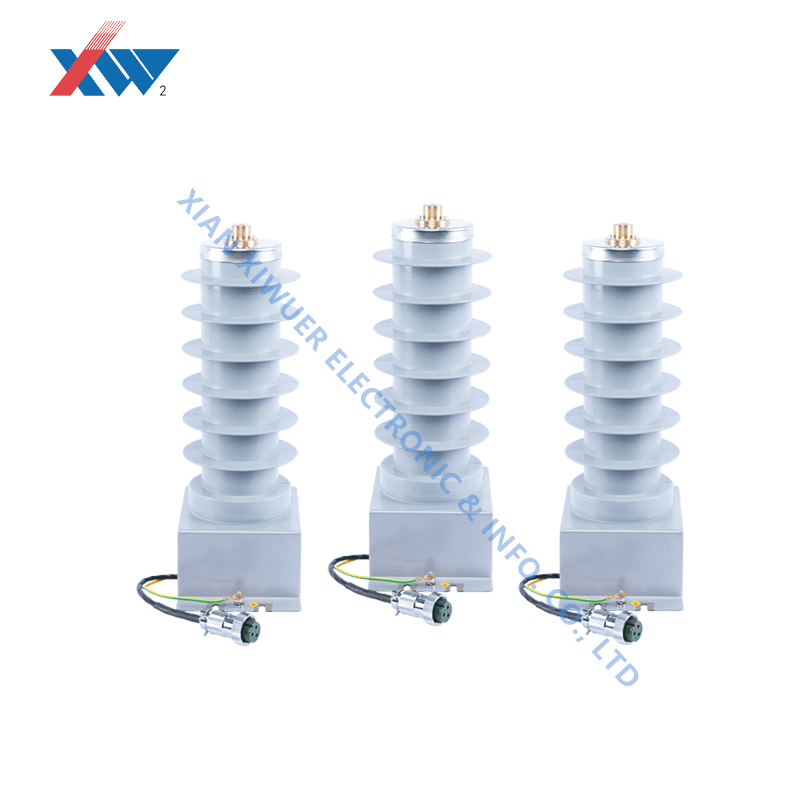

High Voltage Capacitor Power Supply - LEDZW-12

Product Overview

The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.

Technical Specifications

Serial Number	Categories	Unit	Index
1	Output Voltage	V	220VAC±10%
2	Output Power	W	10
3	Working Temperature	ºC	-40~+70
4	Capacitor Dimension	mm	Φ129*330
5	Main Size	mm	18613575
6	Heat Dissipation Structure	-	Insulating Resin Potting
7	Package Structure	-	Plastic & Metal Shell
8	Waterproof Level	-	IP67

Diagram

Performance Indicators

Replaces traditional transformers, 27V AC/DC power output resists resonance, and voltage output is stable.
No partial discharge throughout the 0-14.4kV voltage boost and buck process.
Can withstand 75kV ±150 high-intensity lightning strikes.
Power range: 5-25W; AC/DC output voltage: 24V-40V AC/DC (optional design).
