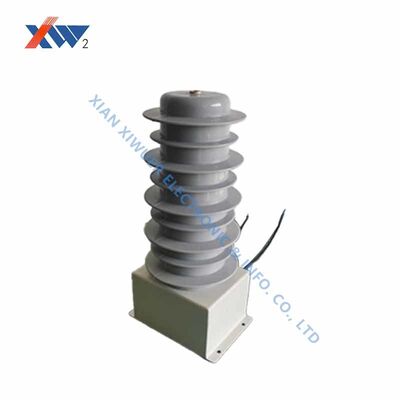

High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers

Name: High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: LEDZW-12
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	LEDZW-12
MOQ:	1 unit
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1,000,000 units a year

Detail Information

Product Description

Detail Information

Place of Origin:

Xian-China

Certification:

ISO

Packaging Details:

Carton

Supply Ability:

1,000,000 units a year

Highlight:

220VAC±10% Output Voltage High Voltage Capacitor Power Supply

IP67 Waterproof Level Power Supply Device

Insulating Resin Potting Capacitive Voltage Extraction Device

Product Description

High Voltage Capacitor Power Supply —— A new generation of power supplies specifically designed for reclosers

Product Overview

High Voltage Capacitor Power Supply - LEDZW-12

Electrical Performance Specifications

Serial Number	Categories	Unit	Index
1	Output Voltage	V	220VAC±10%
2	Output Power	W	10
3	Working Temperature	ºC	-40~+70
4	Capacitor Dimension	mm	Φ129*330
5	Main Size	mm	18613575
6	Heat Dissipation Structure	-	Insulating Resin Potting
7	Package Structure	-	Plastic & Metal Shell
8	Waterproof Level	-	IP67

Technical Diagram

High Voltage Capacitor Power Supply block diagram and terminal connection schematic

Advantages and Innovations

High-power DC output is leading in China
Adopts high-voltage capacitor series transformer energy harvesting, with overvoltage protection and amplitude limiting circuits; capacitors can optimize circuit performance
Compared with similar technologies, it has large energy-harvesting power, flexible combination, wide voltage and power coverage, solves the problem of traditional PT ferroresonance, and reaches the leading level in China
Features high performance and safety, easy installation, stability and reliability, effective isolation, and low power consumption
