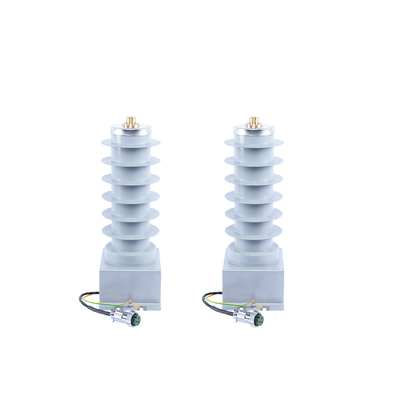

Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs

Brand Name:	XIWUER
Model Number:	LEDZW-12
MOQ:	1 unit
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1,000,000 units a year

Detail Information

Product Description

Detail Information

Place of Origin:

Xian-China

Certification:

ISO

Packaging Details:

Carton

Supply Ability:

1,000,000 units a year

Highlight:

220VAC±10% Output Voltage Capacitive Voltage Divider Power Supply

IP67 Waterproof Level High Voltage Capacitor Power Supply

Insulating Resin Potting HV Capacitor Power Supply

Product Description

Avoiding Electromagnetic Resonance—Capacitive Voltage Divider Power Supply Replacing PTs

Product Description

Avoiding Electromagnetic Resonance--Capacitive Voltage Divider Power Supply Replacing PTs

Electrical Performance Index

Serial Number	Categories	Unit	Index
1	Output Voltage	V	220VAC±10%
2	Output Power	W	10
3	Working Temperature	ºC	-40~+70
4	Capacitor Dimension	mm	Φ129*330
5	Main Size	mm	18613575
6	Heat Dissipation Structure	-	Insulating Resin Potting
7	Package Structure	-	Plastic & Metal Shell
8	Waterproof Level	-	IP67

Working Principle

The circuit block diagram is shown in the figure below. In the figure, the capacitor C is the high-voltage power-taking capacitor, and T is the power-taking transformer. These two components constitute the C-L power-taking mode. The advantage of this method is that the power is large and the overall volume is small.

Economic Benefits and Social Significance

Social benefits are reflected in improving power grid safety, promoting intelligent development, reducing operation and maintenance costs, and contributing to energy conservation and environmental protection.
