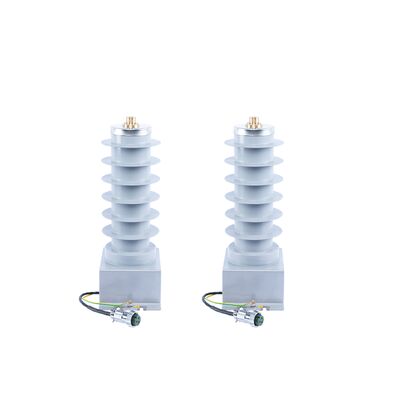

Capacitive Transformer High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage IP67 Waterproof Level and Insulating Resin Potting

Detail Information

Place of Origin:

XIAN-CHINA

Certification:

ISO

Packaging Details:

Carton

Supply Ability:

1,000,000 units a year

Highlight:

Product Description

Capacitive Transformer

High Voltage Capacitor Power Supply - Customizable upon request

Serial Number	Categories	Unit	Index
1	Output Voltage	V	220/24/27...VAC±10%
2	Output Power	W	10
3	Working Temperature	ºC	-40~+70
4	Capacitor Dimension	mm	Φ129*330
5	Main Size	mm	18613575
6	Heat Dissipation Structure	-	Insulating Resin Potting
7	Package Structure	-	Plastic & Metal Shell
8	Waterproof Level	-	IP67

Material and Process Innovation

Breakthrough in High-Voltage Ceramic Capacitor Materials: Uses barium titanate-based ceramic material system, controls the temperature coefficient within ±150ppm/℃ through multi-formula parallel technology, partial discharge quantity <1pC (International Electrotechnical Commission IEC 60664 standard requires <10pC), and voltage withstand strength reaches 50kV/mm, with a service life 3 times longer than domestic traditional film capacitors.
Structural Process Optimization: The silicone sleeve umbrella group structure makes the creepage distance reach 31mm/kV, meeting the requirements of III-level pollution areas. The outdoor arc discharge resistance performance has passed the certification of State Grid's "DL/T 478-2013" standard, which is better than similar products in Europe and America (e.g., the creepage distance of American AEM devices is only 25mm/kV).
