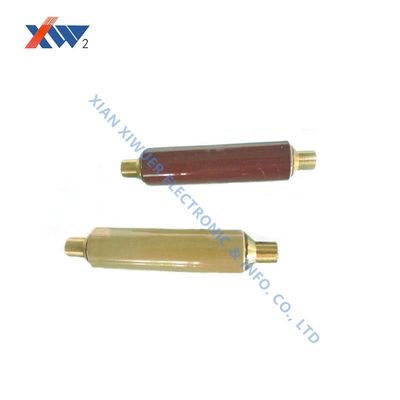

Stable 3.6kVAC Live Line Capacitor with 32kVAC Withstand Voltage and 40kV Lightning Impact for High Voltage Insulation
Product Details
| Capacitance | 210pF~240pF | Rated Voltage | 3.6kV AC |
|---|---|---|---|
| Dielectric Loss | 1V, 1KHz, 25℃ ≤1.2% | Withstand Voltage | 32kVAC·5min |
| Partial Discharge | 3.96kVAC＜10PC | Lightning Impact | 40kV |
Product Description
Stable 3.6KVAC Live Line Capacitor High Voltage Insulation With 32kVAC·5min Withstand Voltage And 40kV Lightning Impact
Live line capacitor 3.6KVAC for capacitive insulator capacitor stable ceramic capacitor high voltage applications.
Features
- Store under safe, dry and clean environment
Applications
Ceramic multilayer capacitors are mainly used in low-power high-voltage multiplier circuit modules:
- Electrostatic generating circuit
- X-ray equipment
- High-voltage negative ion generator
Technical Parameters
| Nominal Voltage | Nominal Capacitance | Capacitance Testing Frequency: 1kHz ±20% Testing Voltage: 1V ±0.2V | Withstanding Voltage (Insulating Oil) | Partial Discharge | Lightning Impulse kV (Peak Value) (Insulating Oil) 1.2/5us |
|---|---|---|---|---|---|
| 3.6kV AC | 230 | 210~240 | 32kV AC 5min | 3.96kV AC ≦10pC | 40 |
| 7.2kV AC | 5 | 4~6 | 41kV AC 5min | 7.92kV AC ≦10pC | 60 |
| 40 | 36~44 | ||||
| 150 | 140~170 | ||||
| 12kV AC | 5 | 4~6 | 52kV AC 5min | 13.2kV AC ≦10pC | 75 |
| 20 | 18~22 | ||||
| 40 | 36~44 | ||||
| 50 | 45~55 | ||||
| 125 | 110~140 | ||||
| 200 | 180~210 | ||||
| 300 | 270~330 | ||||
| 24kV AC | 5 | 4~6 | 70kV AC 5min | 26.4kV AC ≦10pC | 125 |
| 15 | 13~17 | 26.4kV AC ≦10pC | |||
| 35 | 35~42 | 26.4kV AC ≦4pC | |||
| 50 | 45~50 | 26.4kV AC ≦10pC | |||
| 80 | 70~90 | 26.4kV AC ≦10pC | |||
| 150 | 125~180 | 26.4kV AC ≦5pC | |||
| 200/400/500 | 180~220 | 26.4kV AC ≦10pC | |||
| 40.5kV AC | 5 | 4~6 | 115kV AC 5min | 44.5kV AC ≦10pC | 185 |
| 10 | 8.5~11.5 | 44.5kV AC ≦5pC | |||
| 45 | 40~50 | 44.5kV AC ≦10pC | |||
| 100 | 90~110 | 44.5kV AC ≦10pC |
Company Overview
Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters.
The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.
Main Products
Smart Embedded Epoxy Pole
Integrated Instrument Transformer
Capacitive Voltage Divider
High Voltage Capacitor Rod
High Voltage Film Capacitor
High Voltage Resistor
Primary and Secondary Integrated Intelligent assembly and components with the function of voltage measurement, current measurement, protection, temperature monitoring, and power supply
Medium-High Voltage components/parts/ assembly
Surge Protective Device for Power Supply System
Chips for lightening devices
Zinc Oxide Varistor
Thermistor
Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.
The company has the provincial Technical R&D Center with developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor for nearly 20 years. There have been 32 patented technology, 4 invention patents, and 4 national key new products.
The company has achieved ISO9001, ISO14001, and ISO45001 approval and has advanced production equipment including 26m large sintering tunnel furnaces, 8 automatic assembly lines, the largest energy impulse current generator and specialized test equipment.
Products have obtained UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH Certification. The company operates two routine test laboratories with advanced lightning testing equipment and environmental testing equipment.
