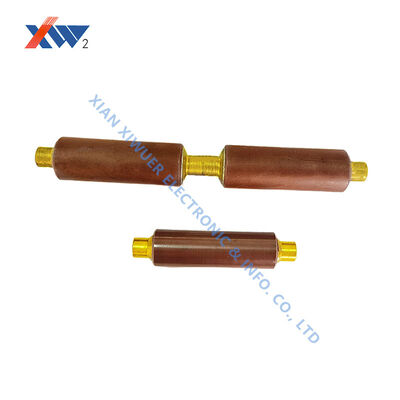

High Voltage Ceramic Capacitor Rod (VDIS Ceramics) for 3.6kV–40.5kV Systems with Ultra-low Partial Discharge and High Insulation Resistance
Product Details
| Mounting Type | Through Hole | Voltage Rating | 2000V |
|---|---|---|---|
| Working Temperature Range | 50℃~+125℃ | Capacitance | 10pF To 1µF |
| Dimension | T: 22.0mm | Voltage Withstanding | 70kV ,50Hz ·1min |
| Voltagerating | 100V To 10kV | Dielectric Losse | 1V，1KHz (20-25)℃ ＜ 0.0040 |
| Life | 10 Years | Applications | High Voltage Power Supplies, Pulse Circuits, Medical Equipment |
| Productname | High Voltage Ceramic Capacitor | Lead Wire | Φ0.48mm |
| Application | Glaze, Paint, Zirconia Silicate | Capacitance At | 1V ,1kHz ,(20-25)℃ 150PF±10% |
| Termination | Tin/Lead Or Lead-Free |
Product Description
Ceramic Capacitor Rods (VDIS Ceramics) for High Voltage Presence Indicating Devices | 3.6kV–40.5kV
Product Overview
Our high-performance ceramic capacitor rods (VDIS ceramics) are precision-engineered core components for high voltage presence indicating devices (VPIS/VDIS) in medium-voltage (MV) switchgear. Designed to meet the strict demands of 3.6kV to 40.5kV systems, these rods ensure accurate voltage detection with ultra-low partial discharge, stable insulation resistance, and reliable long-term operation.
Made with high-grade ceramic dielectric materials, our VDIS rods deliver consistent capacitance values, low dielectric loss, and excellent temperature stability, making them ideal for both indoor and outdoor MV equipment assemblies.
Key Features
- Voltage range: 3.6kV to 40.5kV, covering all common MV applications
- Ultra-low partial discharge: ≤ 10pC at specified test voltages (down to 5pC at 1.1× rated voltage)
- Extremely low dielectric loss: ≤ 0.0040 (tested at 1kHz, 1V)
- High insulation resistance: ≥ 1.0×10⁵ MΩ (1VDC / 1min)
- Excellent lightning impulse withstand capability (up to 185kV peak)
- Temperature characteristics: 2D4 (Y5T), 2B4 (Y5P), DL series available
- Custom screw thread options: M4, M5, M6, M8, M10, M12, M16
- Custom dimensions and capacitance values available upon request
- Compliant with DL/T538-2006 and JB/T10305-2001 standards
Applications
- High voltage presence indicating devices (VPIS/VDIS)
- Capacitive voltage sensors and voltage dividers
- Medium voltage (MV) switchgear, ring main units (RMUs), and cubicles
- Epoxy-cast instrument transformers
- 3.6kV / 7.2kV / 12kV / 24kV / 40.5kV power distribution systems
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | 3.6kVAC, 7.2kVAC, 12kVAC, 24kVAC, 40.5kVAC |
| Nominal Capacitance Range | 4pF to 500pF (customizable) |
| Dielectric Loss | ≤ 0.0040 (1kHz, 1V ±0.2V) |
| Insulation Resistance | ≥ 1.0×10⁵ MΩ (1VDC / 1min) |
| Partial Discharge | ≤ 10pC / ≤ 5pC (at specified test voltages) |
| Lightning Impulse Withstand | 40kV to 185kV (1.2/5μs wave) |
| Test Standard | DL/T538-2006, JB/T10305-2001 |
