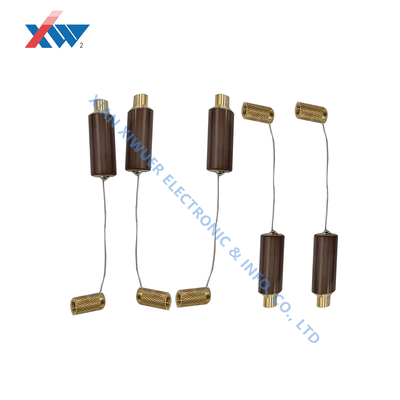

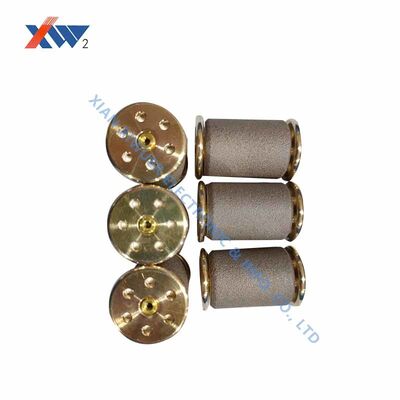

Customizable VDIS Ceramic Capacitor Rod for 3.6kV–40.5kV VPIS & MV Sensors with Low Partial Discharge
Product Details
| Mounting Type | Through Hole | Voltage Rating | 2000V |
|---|---|---|---|
| Working Temperature Range | 50℃~+125℃ | Capacitance | 10pF To 1µF |
| Dimension | T: 22.0mm | Voltage Withstanding | 70kV ,50Hz ·1min |
| Voltagerating | 100V To 10kV | Dielectric Losse | 1V，1KHz (20-25)℃ ＜ 0.0040 |
| Life | 10 Years | Applications | High Voltage Power Supplies, Pulse Circuits, Medical Equipment |
| Productname | High Voltage Ceramic Capacitor | Lead Wire | Φ0.48mm |
| Application | Sealing Unused Cable Ports In MV Switchgear And RMUs | Capacitance At | 1V ,1kHz ,(20-25)℃ 150PF±10% |
| Termination | Tin/Lead Or Lead-Free |
Product Description
Customizable VDIS Ceramic Capacitor Rods for 3.6kV–40.5kV VPIS & MV Sensors
Designed for seamless integration into your medium-voltage equipment, our VDIS ceramic capacitor rods are tailored to fit a wide range of voltage presence indicating systems (VPIS) and capacitive voltage sensors. These rods serve as the critical dielectric element, providing the precise capacitance needed for reliable voltage detection in 3.6kV to 40.5kV switchgear.
We offer extensive customization options, including capacitance values, thread types, and physical dimensions, to match your exact design requirements. Our rods are manufactured to ensure consistent performance, low partial discharge, and compliance with international standards.
Key Features
- Fully customizable: Dimensions, capacitance, and screw threads tailored to your drawings
- Wide voltage coverage: 3.6kV, 7.2kV, 12kV, 24kV, 40.5kV systems
- Low partial discharge design: <10pC (meets strict MV equipment standards)
- High stability in temperature and humidity conditions
- RoHS-compliant materials, suitable for harsh environments
- Fast lead times for standard and custom orders
- Comprehensive technical support and datasheets provided
Applications
- OEM replacement parts for VPIS/VDIS systems
- Custom MV switchgear and RMU designs
- Capacitive voltage divider assemblies
- Epoxy resin cast transformers and sensors
- Power distribution panels and control cabinets
Technical Specifications
| Parameter | Details |
|---|---|
| Operating Voltage | 3.6kVAC ~ 40.5kVAC |
| Capacitance Tolerance | ±20% (custom tolerances available) |
| Dielectric Strength | Meets IEC/GB standards for MV equipment |
| Test Frequency | 1kHz ±20% |
| Customization | Dimensions, thread type, capacitance, and packaging |
| Quality Standard | ISO 9001 certified manufacturing |
