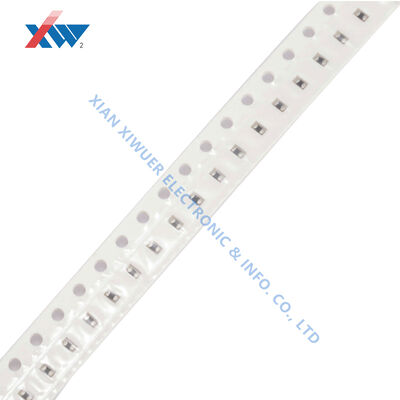

Ultra-Low Capacitance ESD Chip Varistor for High-Speed Signal and Automotive Circuit Protection

  • Ultra-Low Capacitance ESD Chip Varistor for High-Speed Signal and Automotive Circuit Protection
  • Ultra-Low Capacitance ESD Chip Varistor for High-Speed Signal and Automotive Circuit Protection
  • Ultra-Low Capacitance ESD Chip Varistor for High-Speed Signal and Automotive Circuit Protection
  • Ultra-Low Capacitance ESD Chip Varistor for High-Speed Signal and Automotive Circuit Protection
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number 0603,0805,1206,3220,4032
Minimum Order Quantity 100
Price Negotiable
Packaging Details Carton
Delivery Time 25~30 days
Payment Terms L/C,T/T
Supply Ability 3,000,000 pcs a year
Product Details
Mounting Type Through Hole Voltage Rating 2000V
Working Temperature Range 50℃~+125℃ Capacitance 100pF
Dimension T: 22.0mm Voltage Withstanding 70kV ,50Hz ·1min
Voltagerating 100V To 10kV Dielectric Losse 1V，1KHz (20-25)℃ ＜ 0.0040
Life 10 Years Applications High Voltage Power Supplies, Pulse Circuits, Medical Equipment
Productname High Voltage Ceramic Capacitor Lead Wire Φ0.48mm
Application Ring Main Unit Capacitance At 1V ,1kHz ,(20-25)℃ 150PF±10%
Termination Tin/Lead Or Lead-Free Function Take Electricity, Accurate Measurement
Accuracy 0.5P Rated Frequency 50/60Hz
Withstanding Voltage 50Hz 42kV ·1min (HV-Earthing) Varistor Voltage (Breakdown Voltage) 270=27V, 471=470V
Response Time <0.5 Ns Leakage Current <0.1uA
Operating Temperature Exceeds -40°C ~125 °C Clamping Voltage 34-52V
Leave a Message
Product Description

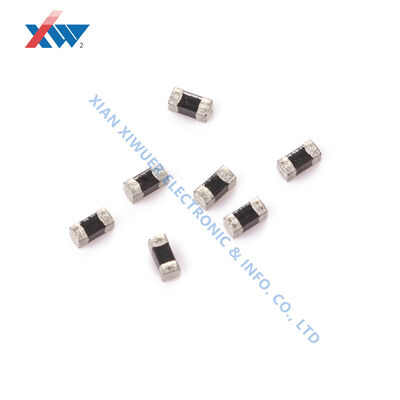

Ultra-Low Capacitance ESD Chip Varistor
This series of ESD chip varistors is specially developed for electrostatic discharge protection, fully compliant with IEC61000-4-2 (Contact ±30KV) and ISO7637-2:2004(E) standards, supporting Pulse 1, 2, 3a and 3b surge protection.
Key Features
  • Ultra-fast response time below 0.5ns
  • Reverse leakage current less than 0.1μA
  • Bidirectional clamping structure
  • Stable operation above 125°C

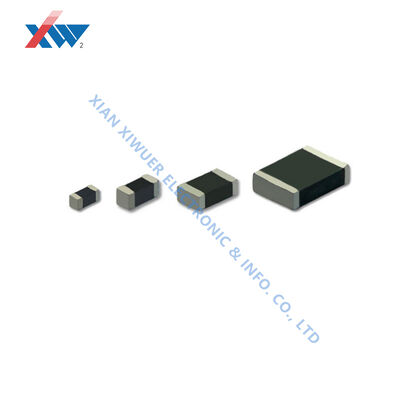

  • Available sizes: 0201, 0402, 0603, 0805, 1205
  • Capacitance options from 0.02pF to 500pF
  • Lead-free packaging compliant with global environmental requirements
  • Supports lead-free reflow soldering
Applications
Portable electronics, communication devices, automotive signal modules, industrial control units, precision instruments and all high-speed data transmission circuits that require ESD suppression.
Technical Parameters
Ultra-Low Capacitance ESD Chip Varistor Technical Parameters Chart
