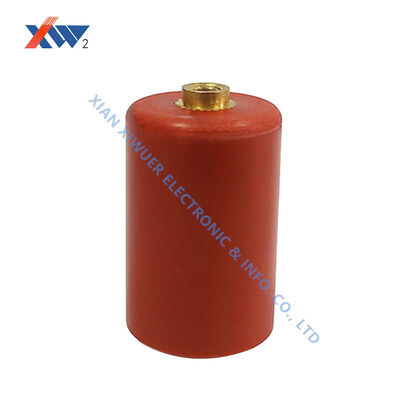

10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss

  • 10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss
  • 10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss
  • 10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss
  • 10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss
  • 10kV–35kV Ceramic Capacitor Element for Surge Arresters with High Impulse Voltage Withstand and Low Dielectric Loss
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number 20KVAC-400pF
Minimum Order Quantity 100
Price Negotiable
Packaging Details Carton
Delivery Time 25~30 workday
Payment Terms L/C,T/T
Supply Ability 3,000,000 pcs a year
Product Details
Voltage Rating 2000V Working Temperature Range 50℃~+125℃
Capacitance High Voltage STD=250pF Dimension T: 22.0mm
Voltage Withstanding 70kV ,50Hz ·1min Voltagerating 100V To 10kV
Dielectric Losse 1V，1KHz (20-25)℃ ＜ 0.0040 Life 10 Years
Applications High Voltage Power Supplies, Pulse Circuits, Medical Equipment Productname High Voltage Ceramic Capacitor
Lead Wire Φ0.48mm Application Ring Main Unit
Capacitance At 1V ,1kHz ,(20-25)℃ 150PF±10% Termination Tin/Lead Or Lead-Free
Function Take Electricity, Accurate Measurement Accuracy 0.5P
Rated Frequency 50/60Hz Withstanding Voltage 50Hz 42kV ·1min (HV-Earthing)
Leave a Message
Product Description
Ceramic Capacitor Elements for Medium Voltage Surge Arresters | 10kV–35kV Grading Capacitors

Our surge arrester ceramic capacitor elements serve as voltage grading capacitors inside metal-oxide surge arresters (MOSA). These high-voltage ceramic capacitors ensure uniform voltage distribution across the ZnO varistor stack, improving arrester performance and extending service life in 10kV to 35kV power systems.

Built with premium ceramic dielectric formulations, our elements withstand repeated impulse voltages and harsh outdoor conditions, delivering stable capacitance under thermal cycling and pollution exposure.

Key Features
  • Optimized for 10kV, 24kV, 35kV surge arrester designs
  • High impulse voltage withstand capability
  • Stable capacitance under wide temperature variation
  • Low dielectric loss under continuous operating voltage
  • Resistant to moisture, pollution and UV degradation
  • Custom diameter and height to fit arrester housings
  • Compatible with both porcelain and polymer housed arresters
Applications
  • Medium-voltage metal-oxide surge arresters (MOSA)
  • Distribution class and station class arresters
  • Overhead line and substation surge protection
  • Wind farm and solar plant lightning protection
  • Capacitive grading inside polymer insulator assemblies
Technical Specifications
Parameter Value
Rated Voltage 10kV - 35kV system voltage
Capacitance Range 20pF - 200pF (custom)
Impulse Withstand Up to 200kV peak
Partial Discharge ≤ 10pC at reference voltage
Operating Temp Range -55°C to +150°C
Dielectric Material High-grade ceramic capacitor ceramic
Mounting Stackable design for multi-element arrays
Tags:

Outdoor hv ceramic capacitor

Small Voltage Indicator Capacitor

Dc High Voltage Ceramic Capacitor
