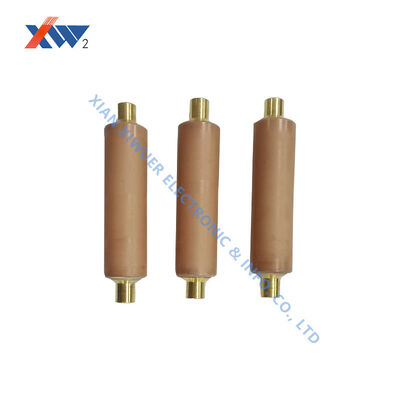

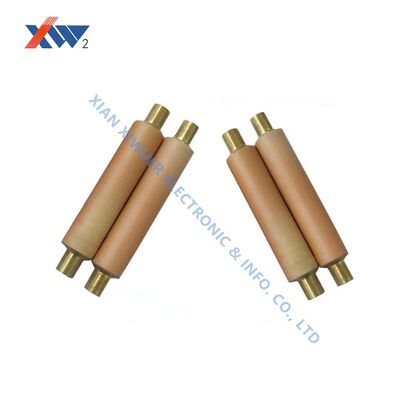

Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear

  • Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear
  • Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear
  • Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear
  • Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear
  • Plug-and-Play VDIS Ceramic Capacitor Module with 2000V Voltage Rating and 10 Years Life for MV Switchgear
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001,CCC
Model Number CT8-2-36kV-15pF
Minimum Order Quantity 100
Price Negotiable
Packaging Details Carton
Delivery Time 25~30 workday
Payment Terms L/C,T/T
Supply Ability 3,000,000 pcs a year
Product Details
Mounting Type Through Hole Voltage Rating 2000V
Working Temperature Range 50℃~+125℃ Capacitance 10pF To 1µF
Dimension T: 22.0mm Voltage Withstanding 70kV ,50Hz ·1min
Voltagerating 100V To 10kV Dielectric Losse 1V，1KHz (20-25)℃ ＜ 0.0040
Life 10 Years Applications High Voltage Power Supplies, Pulse Circuits, Medical Equipment
Productname High Voltage Ceramic Capacitor Lead Wire Φ0.48mm
Application Glaze, Paint, Zirconia Silicate Capacitance At 1V ,1kHz ,(20-25)℃ 150PF±10%
Termination Tin/Lead Or Lead-Free
Leave a Message
Product Description
Integrated VDIS Ceramic Capacitor Modules | Plug-and-Play Voltage Detection Assemblies for MV Switchgear
Our integrated VDIS ceramic capacitor modules are pre-assembled, ready-to-install units combining ceramic capacitor rods, connection terminals and insulating housing in a single package. Designed for OEM switchgear manufacturers, these plug-and-play modules simplify assembly of voltage presence indicating systems (VPIS/VDIS) inside 12kV to 40.5kV switchgear panels.
Each module is factory-tested for capacitance, partial discharge and insulation resistance, reducing your in-house testing workload and ensuring consistent quality across production batches.
Key Features
  • Fully integrated: ceramic core + housing + connection terminals
  • Factory calibrated capacitance and PD tested
  • Standardized mounting footprint for easy drop-in replacement
  • Compatible with most common VPIS indicator circuits
  • Available with built-in high-voltage limiting resistor
  • IP rating options for indoor and outdoor cubicles
  • Short lead times for standard module configurations
Applications
  • OEM MV switchgear VPIS / VDIS assembly
  • Ring main unit (RMU) voltage presence indication
  • Capacitive voltage indicator retrofit kits
  • Live-line monitoring in distribution panels
  • Standardized spare parts for switchgear maintenance
Technical Specifications
Parameter Value
System Voltage 12kV, 24kV, 36kV, 40.5kV
Capacitance per Module 40pF - 120pF (standard series)
Partial Discharge ≤ 5pC at 1.1* Ur
Output Signal Compatible with standard neon / LED indicators
Mounting Threaded / flange / snap-fit options
Housing Material Epoxy resin / polymer (custom)
Operating Temperature -40°C to +105°C
Compliance IEC 61243-5 (VDIS), GB/T 25083
