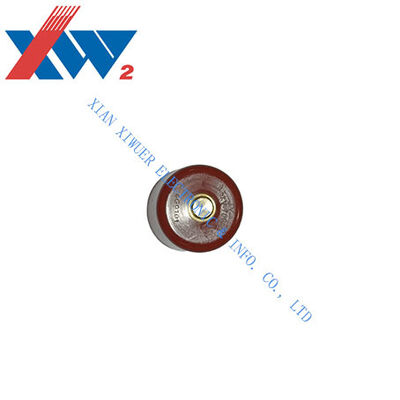

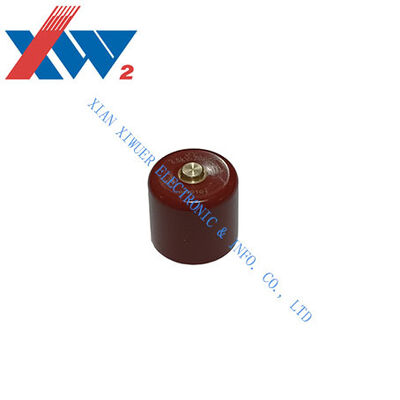

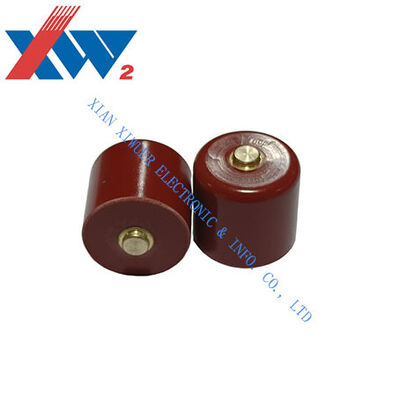

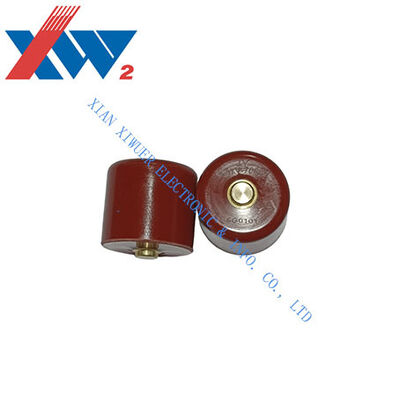

3.5kV 700pF High Voltage Ceramic Capacitor For Industrial Electronic Applications
Product Details
| Product Type | High Voltage Ceramic Capacitor | Capacitance | 700PF |
|---|---|---|---|
| Rated Voltage | 3.5KV DC | Capacitor Material | Ceramic Dielectric |
| Tolerance | ±10% | Mounting Type | Through Hole / Radial Lead |
| Application | Power Supply, Inverter, Industrial Electronics |
Product Description
3.5kV 700pF High Voltage Ceramic Capacitor for Industrial Electronic Applications
Product Description
The 3.5kV 700pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor designed for electronic circuits that require stable capacitance, high insulation performance, and long-term operation.
Using ceramic dielectric materials and optimized internal structure, this capacitor provides stable electrical characteristics under high voltage and high frequency conditions. It is suitable for applications where low loss, compact size, and reliable performance are required.
This capacitor is commonly used in power electronic equipment, high voltage power supplies, industrial control systems, inverter equipment, and protection circuits.
Key Features
High Voltage Capability
Rated voltage up to 3500V DC, suitable for high-voltage circuit applications with strict insulation requirements.
Stable Capacitance Performance
The capacitance value of 700pF provides consistent electrical performance and helps maintain circuit stability during operation.
Low Loss Characteristics
Ceramic dielectric materials provide low dielectric loss characteristics, helping improve energy efficiency in high-frequency applications.
High Insulation Resistance
Designed for high-voltage environments with high insulation resistance and stable long-term operation.
Compact Structure
Compact size and simple structure make it easy to install in various electronic equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 700pF |
| Rated Voltage | 3.5kV DC (3500V) |
| Dielectric Material | Ceramic |
| Capacitance Tolerance | ±10% (Optional) |
| Operating Temperature | -25℃ to +85℃ |
| Application Frequency | High Frequency Applications |
| Insulation Resistance | High Insulation Performance |
Applications
The 3.5kV 700pF High Voltage Ceramic Capacitor can be used in:
-
High voltage power supplies
-
Power electronic equipment
-
Inverter systems
-
Frequency conversion equipment
-
Industrial control systems
-
Pulse circuits
-
Resonant circuits
-
Protection circuits
-
Communication equipment
Product Advantages
-
Stable electrical characteristics under high voltage conditions
-
Good insulation performance
-
Low dielectric loss
-
Suitable for high-frequency operation
-
Long service life
-
Custom specifications available according to customer requirements
Meta Description
3.5kV 700pF high voltage ceramic capacitor with stable capacitance, high insulation resistance, and low loss characteristics. Suitable for power supplies, industrial equipment, and high voltage circuits.
