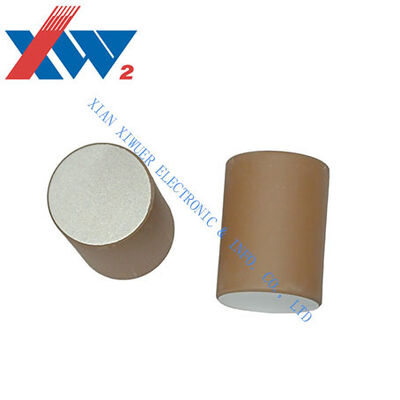

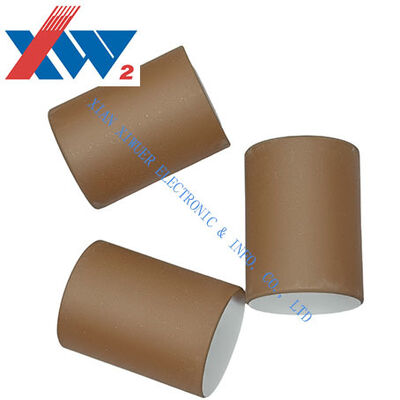

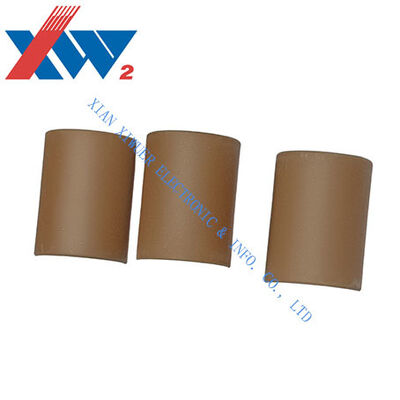

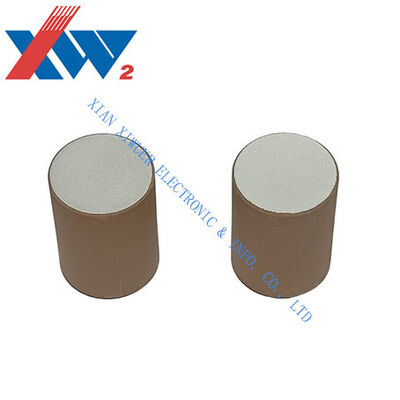

3.5kV 600pF High Voltage Ceramic Capacitor for Industrial Electronic Applications
Product Details
| Product Type | High Voltage Ceramic Capacitor | Capacitance | 600pF |
|---|---|---|---|
| Rated Voltage | 3.5kV DC (3500V) | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ To +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 3.5kV 600pF High Voltage Ceramic Capacitor is designed for high-voltage electronic circuits that require stable capacitance, high insulation performance, and reliable long-term operation.
Made with ceramic dielectric materials and optimized internal structure, this capacitor provides stable electrical characteristics under high voltage and high frequency conditions. It features low dielectric loss, good voltage endurance, and consistent performance, making it suitable for applications requiring electrical stability and durability.
This high voltage ceramic capacitor is commonly used in power electronic equipment, high voltage power supplies, inverter systems, industrial control equipment, frequency conversion equipment, and protection circuits.
Key Features
High Voltage Capability
Rated voltage up to 3500V DC, suitable for high-voltage circuits requiring strong insulation performance and reliable voltage withstand capability.
Stable Capacitance Performance
With a capacitance value of 700pF, this capacitor maintains stable electrical characteristics and helps ensure consistent circuit operation.
Low Dielectric Loss
The ceramic dielectric structure provides low dielectric loss characteristics, making it suitable for high-frequency and high-voltage applications.
High Insulation Resistance
Designed for high-voltage environments with high insulation resistance and stable long-term electrical performance.
Compact Structure
Compact design and reliable mechanical structure allow easy installation in various electronic equipment.
Applications
The 3.5kV 600pF High Voltage Ceramic Capacitor is suitable for:
-
High voltage power supplies
-
Power electronic equipment
-
Inverter systems
-
Frequency conversion equipment
-
Industrial control systems
-
Pulse circuits
-
Resonant circuits
-
Protection circuits
-
Communication equipment
Product Advantages
-
Stable electrical characteristics under high voltage conditions
-
High insulation resistance
-
Low dielectric loss
-
Good high-frequency performance
-
Compact structure
-
Long service life
-
Custom specifications available according to customer requirements
