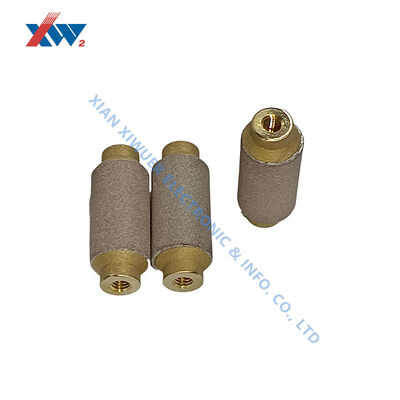

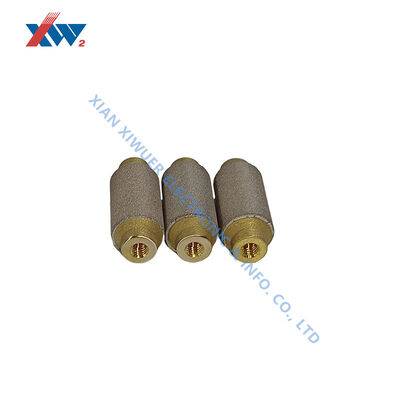

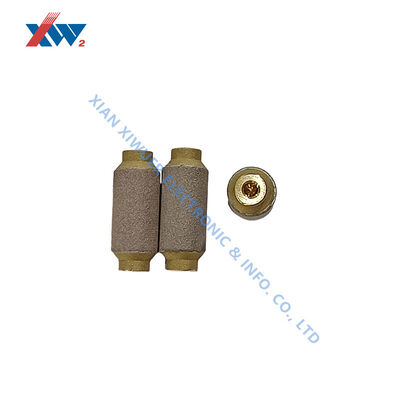

12kV 20pF Sand Blasted High Voltage Ceramic Capacitor For High Voltage Applications
Product Details
| Capacitor Type | Sand Blasted High Voltage Ceramic Capacitor | Rated Voltage | 12000V DC |
|---|---|---|---|
| Capacitance Value | 20pF | Dielectric Material | Ceramic Dielectric |
| Surface Treatment | Sand Blasted | Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ | Operating Temperature | -25℃ ~ +85℃ |
Product Description
Product Name
12kV 20pF Sand Blasted High Voltage Ceramic Capacitor for High Voltage Applications
Product Description
The 12kV 20pF Sand Blasted High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor featuring a sand blasted surface treatment, developed for applications requiring enhanced insulation performance and stable electrical characteristics.
The special surface treatment improves insulation reliability and surface protection, helping the capacitor maintain stable performance under high voltage operating conditions. Made with ceramic dielectric materials, this capacitor provides low dielectric loss, good voltage withstand capability, and consistent capacitance characteristics.
With a rated voltage of 12kV DC and a capacitance value of 20pF, this capacitor is suitable for high-voltage circuits where insulation performance, compact structure, and long-term operating stability are required.
It is commonly used in high-voltage power supplies, pulse equipment, protection circuits, industrial electronic systems, and other high-voltage applications.
Key Features
Sand Blasted Surface Treatment
The sand blasted surface structure improves insulation performance and enhances surface protection, making the capacitor suitable for high-voltage operating environments.
High Voltage Withstand Capability
Rated voltage up to 12kV DC (12000V), providing stable performance in high-voltage circuit applications.
Stable Capacitance Performance
The 20pF capacitance value ensures consistent electrical characteristics for precise high-voltage circuit designs.
Low Dielectric Loss
Ceramic dielectric materials provide low loss characteristics, supporting stable operation in high-frequency and high-voltage circuits.
Compact and Reliable Structure
Compact construction with good mechanical strength allows easy integration into high-voltage electronic equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Sand Blasted High Voltage Ceramic Capacitor |
| Capacitance | 20pF |
| Rated Voltage | 12kV DC (12000V) |
| Dielectric Material | Ceramic Dielectric |
| Surface Treatment | Sand Blasted |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 12kV 20pF Sand Blasted High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection systems
- Industrial electronic equipment
- Medical electronic devices
- Communication equipment
- High voltage testing equipment
Product Advantages
- Sand blasted surface treatment for improved insulation performance
- Stable electrical characteristics under high voltage conditions
- Low dielectric loss
- High insulation resistance
- Good voltage withstand capability
- Compact structure
- Suitable for demanding high-voltage applications
- Custom specifications available
