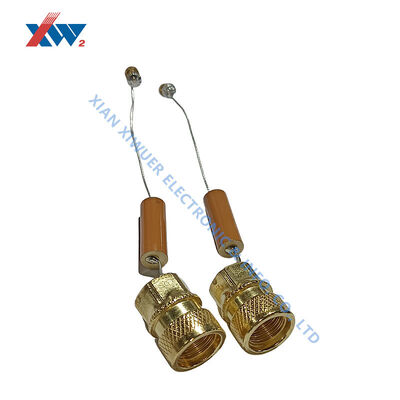

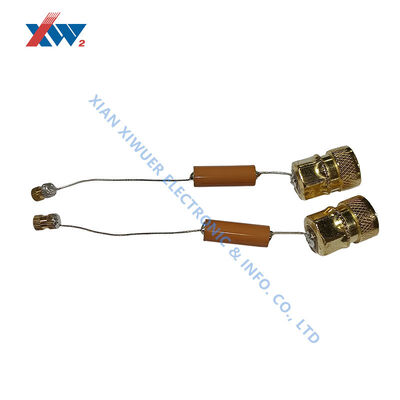

12kV 125pF High Voltage Ceramic Capacitor For High Voltage Circuit Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 12000V DC |
|---|---|---|---|
| Capacitance Value | 125pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 12kV 125pF High Voltage Ceramic Capacitor is a high-voltage ceramic component developed for electronic circuits that require stable capacitance, high insulation capability, and reliable electrical performance.
The capacitor uses ceramic dielectric materials with a compact internal structure to maintain stable electrical characteristics under high voltage conditions. It provides low dielectric loss, good voltage withstand capability, and high insulation resistance, making it suitable for high-voltage and high-frequency circuit applications.
With a rated voltage of 12kV DC (12000V) and a capacitance value of 125pF, this capacitor is suitable for applications requiring stable operation, compact design, and consistent electrical performance.
It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.
Key Features
High Voltage Capability
Rated voltage up to 12kV DC (12000V), suitable for high-voltage circuits requiring strong insulation performance and stable operation.
Stable Capacitance Characteristics
The 125pF capacitance value provides consistent electrical performance and helps maintain circuit stability during operation.
Low Dielectric Loss
The ceramic dielectric material offers low dielectric loss characteristics, supporting efficient operation in high-frequency and high-voltage circuits.
High Insulation Resistance
Provides high insulation resistance to improve electrical stability and support long-term operation in high-voltage environments.
Compact Structure
Compact construction allows easy integration into various high-voltage electronic equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 125pF |
| Rated Voltage | 12kV DC (12000V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 12kV 125pF High Voltage Ceramic Capacitor is suitable for:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection circuits
- Industrial electronic equipment
- Communication equipment
- Medical electronic devices
- High voltage testing equipment
Product Advantages
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good high-frequency performance
- Compact structure
- Long service life
- Custom specifications available
