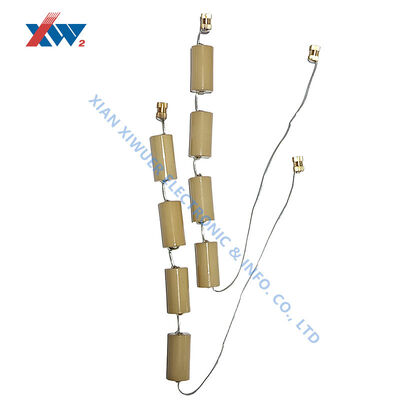

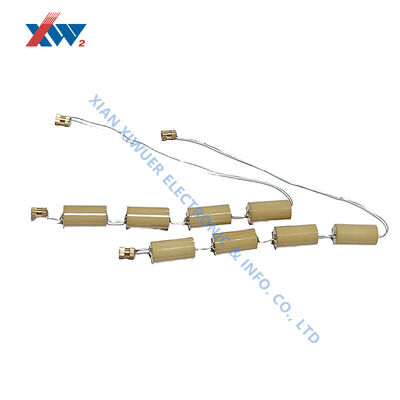

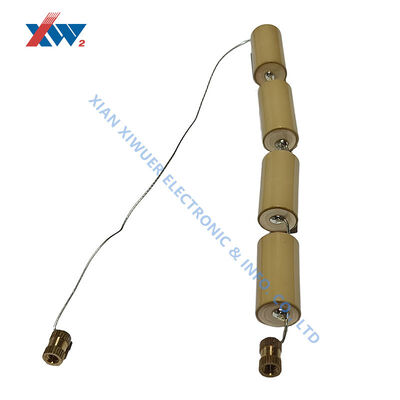

12kV 180pF High Voltage Ceramic Capacitor For High Voltage Electronic Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 12000V DC |
|---|---|---|---|
| Capacitance Value | 180pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 12kV 180pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor designed for electronic circuits that require stable capacitance, high insulation performance, and consistent electrical characteristics.
Using ceramic dielectric materials and a reliable structural design, this capacitor maintains stable performance under high voltage operating conditions. It provides low dielectric loss, good voltage withstand capability, and high insulation resistance, making it suitable for high-voltage and high-frequency circuit applications.
With a rated voltage of 12kV DC (12000V) and a capacitance value of 180pF, this capacitor is suitable for applications requiring compact structure, stable electrical performance, and long-term operation.
It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.
Key Features
High Voltage Withstand Capability
Rated voltage up to 12kV DC (12000V), suitable for high-voltage circuits requiring reliable insulation performance and stable operation.
Stable Capacitance Characteristics
The 180pF capacitance value provides consistent electrical characteristics and helps maintain circuit stability during operation.
Low Dielectric Loss
The ceramic dielectric material offers low dielectric loss characteristics, reducing energy loss and supporting stable operation in high-frequency circuits.
High Insulation Resistance
High insulation resistance helps improve electrical reliability and supports continuous operation in high-voltage environments.
Compact Structure
Compact design allows easy integration into high-voltage electronic equipment with limited installation space.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 180pF |
| Rated Voltage | 12kV DC (12000V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 12kV 180pF High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection circuits
- Industrial electronic equipment
- Communication equipment
- Medical electronic devices
- High voltage testing equipment
Product Advantages
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good high-frequency performance
- Compact structure
- Long service life
- Custom specifications available
