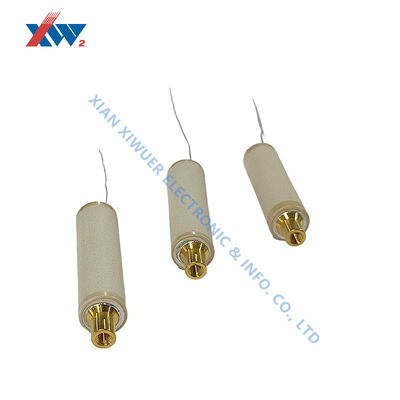

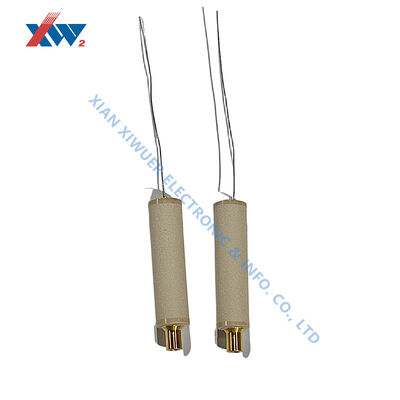

24kV 75pF High Voltage Ceramic Capacitor For High Voltage Circuit Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 24000V DC |
|---|---|---|---|
| Capacitance Value | 75pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 24kV 75pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor used in electronic circuits requiring high voltage capability, stable capacitance, and reliable insulation performance.
The capacitor uses ceramic dielectric materials and a stable internal structure to maintain consistent electrical characteristics during high voltage operation. It provides low dielectric loss, high insulation resistance, and good voltage withstand capability, making it suitable for high-voltage and high-frequency circuit applications.
With a rated voltage of 24kV DC (24000V) and a capacitance value of 75pF, this capacitor is suitable for applications requiring stable electrical performance, compact installation, and long-term operating reliability.
It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.
Key Features
High Voltage Capability
Rated voltage up to 24kV DC (24000V), suitable for high-voltage circuits requiring stable insulation performance and reliable voltage withstand capability.
Stable Capacitance Performance
The 75pF capacitance value provides consistent electrical characteristics and helps maintain stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable performance in high-frequency and high-voltage applications.
High Insulation Resistance
High insulation resistance helps improve electrical stability and supports continuous operation in high-voltage environments.
Compact Structure
Compact design allows easy integration into various high-voltage electronic equipment.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 75pF |
| Rated Voltage | 24kV DC (24000V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 24kV 75pF High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection circuits
- Industrial electronic equipment
- High voltage testing equipment
- Communication systems
- Medical electronic devices
Product Advantages
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good high-frequency performance
- Compact structure
- Long service life
- Custom specifications available
