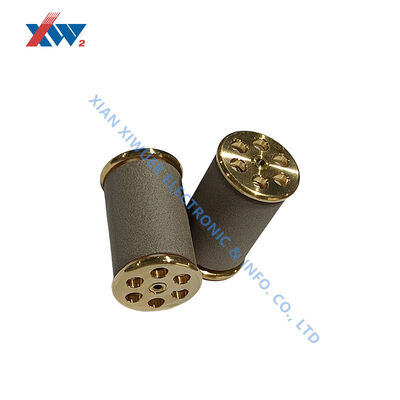

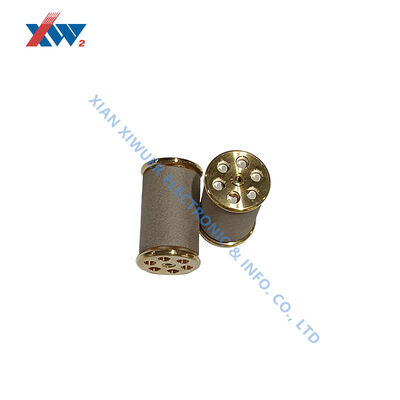

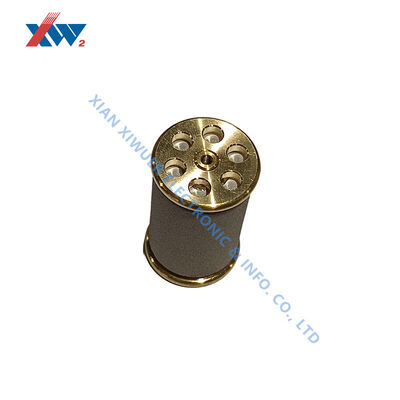

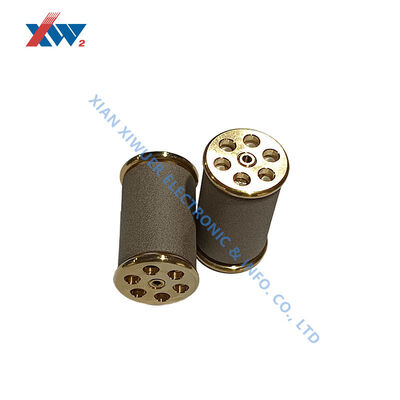

24kV 85pF High Voltage Ceramic Capacitor For High Voltage Circuit Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 24000V DC |
|---|---|---|---|
| Capacitance Value | 85pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 24kV 85pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor designed for electronic circuits requiring high voltage withstand capability, stable capacitance, and consistent electrical performance.
The capacitor is manufactured with ceramic dielectric materials and a stable internal structure to maintain reliable electrical characteristics under high voltage operating conditions. It offers low dielectric loss, high insulation resistance, and good voltage withstand performance, making it suitable for high-voltage and high-frequency circuit applications.
With a rated voltage of 24kV DC (24000V) and a capacitance value of 85pF, this capacitor is suitable for applications where stable operation, compact structure, and long-term electrical performance are required.
It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.
Key Features
High Voltage Withstand Capability
Rated voltage up to 24kV DC (24000V), suitable for high-voltage circuits requiring strong insulation performance and stable voltage endurance.
Stable Capacitance Performance
The 85pF capacitance value provides consistent electrical characteristics and helps maintain stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable operation in high-frequency and high-voltage circuits.
High Insulation Resistance
High insulation resistance improves electrical stability and supports long-term operation in high-voltage environments.
Compact Structure
Compact design allows flexible installation in high-voltage electronic equipment with limited space requirements.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 85pF |
| Rated Voltage | 24kV DC (24000V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 24kV 85pF High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection circuits
- Industrial electronic equipment
- High voltage testing equipment
- Communication systems
- Medical electronic devices
Product Advantages
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good high-frequency performance
- Compact structure
- Long service life
- Custom specifications available
