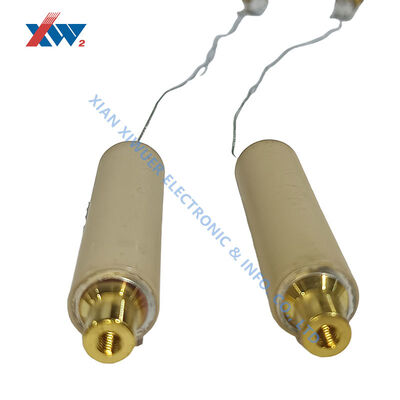

36kV 90pF High Voltage Ceramic Capacitor For High Voltage Circuit Applications
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 36000V DC |
|---|---|---|---|
| Capacitance Value | 90pF | Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% | Insulation Resistance | ≥10GΩ |
| Operating Temperature | -25℃ ~ +85℃ | Mounting Type | Through Hole / Radial Lead |
Product Description
Product Description
The 36kV 90pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor used in electronic circuits requiring high voltage capability, stable capacitance, and reliable insulation performance.
The capacitor is manufactured with ceramic dielectric materials and a stable internal structure to maintain consistent electrical characteristics under high voltage operating conditions. It provides low dielectric loss, high insulation resistance, and good voltage withstand capability, making it suitable for high-voltage and high-frequency circuit applications.
With a rated voltage of 36kV DC (36000V) and a capacitance value of 90pF, this capacitor is suitable for applications requiring high voltage endurance, stable electrical performance, and compact installation.
It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.
Key Features
High Voltage Capability
Rated voltage up to 36kV DC (36000V), suitable for high-voltage circuits requiring strong insulation performance and reliable voltage withstand capability.
Stable Capacitance Performance
The 90pF capacitance value provides consistent electrical characteristics and helps maintain stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable operation in high-frequency and high-voltage circuits.
High Insulation Resistance
High insulation resistance improves electrical stability and supports long-term operation in high-voltage environments.
Compact Structure
Compact design allows flexible integration into high-voltage electronic equipment and systems where installation space is limited.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor |
| Capacitance | 90pF |
| Rated Voltage | 36kV DC (36000V) |
| Dielectric Material | Ceramic Dielectric |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Through Hole / Radial Lead |
Applications
The 36kV 90pF High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- Pulse circuits
- High frequency circuits
- Voltage protection circuits
- Industrial electronic equipment
- High voltage testing equipment
- Communication systems
- Medical electronic equipment
Product Advantages
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good high-frequency performance
- Strong voltage withstand capability
- Compact structure
- Long service life
- Custom specifications available
