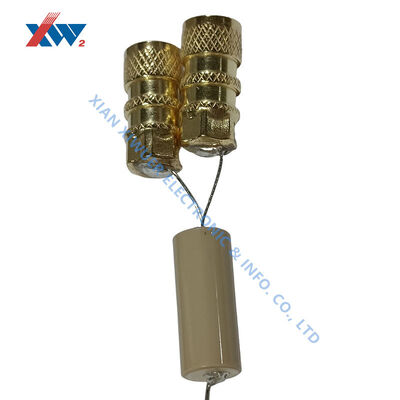

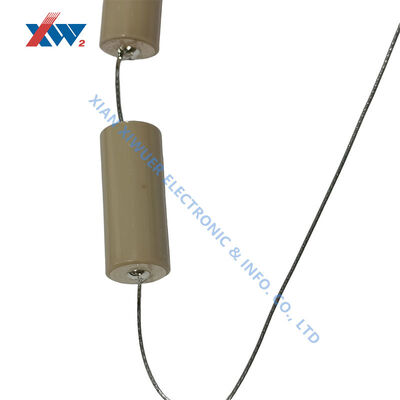

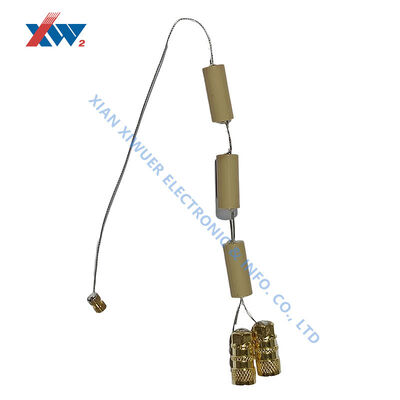

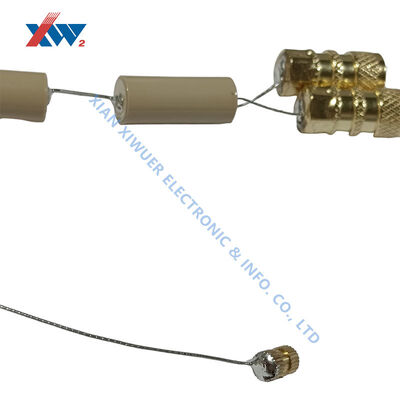

40.5kV 45pF High Voltage Ceramic Capacitor With Large Cap Terminal
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 40500V DC |
|---|---|---|---|
| Capacitance Value | 45pF | Dielectric Material | Ceramic Dielectric |
| Terminal Type | Large Cap Terminal | Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ | Operating Temperature | -25℃ ~ +85℃ |
| Connection Method | Terminal / Soldering | ||
| Highlight | 40.5kV high voltage ceramic capacitor,45pF ceramic capacitor with large terminal,high voltage capacitor with large cap |
||
Product Description
Product Description
The 40.5kV 45pF High Voltage Ceramic Capacitor with Large Cap Terminal is a high-voltage ceramic capacitor developed for applications requiring high voltage capability, stable capacitance, and reliable electrical connection.
The capacitor features a large cap terminal structure, providing a larger contact area and improved connection reliability for high-voltage equipment. The ceramic dielectric construction helps maintain stable electrical characteristics under high voltage operating conditions, with low dielectric loss, high insulation resistance, and good voltage withstand capability.
With a rated voltage of 40.5kV DC (40500V) and a capacitance value of 45pF, this capacitor is suitable for high-voltage circuits where strong insulation performance, stable operation, and convenient installation are required.
It is commonly used in high voltage power supplies, high voltage testing equipment, pulse circuits, industrial electronic systems, and protection applications.
Key Features
Large Cap Terminal Structure
Equipped with a large cap terminal design, providing increased contact area and improved mechanical connection for high-voltage applications.
High Voltage Capability
Rated voltage up to 40.5kV DC (40500V), suitable for high-voltage circuits requiring reliable insulation performance and voltage withstand capability.
Stable Capacitance Performance
The 45pF capacitance value maintains consistent electrical characteristics and supports stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable performance in high-frequency and high-voltage circuits.
High Insulation Resistance
High insulation resistance helps improve electrical stability during long-term operation in high-voltage environments.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | High Voltage Ceramic Capacitor with Large Cap Terminal |
| Capacitance | 45pF |
| Rated Voltage | 40.5kV DC (40500V) |
| Dielectric Material | Ceramic Dielectric |
| Terminal Structure | Large Cap Terminal |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Mounting Type | Terminal / Soldering |
Applications
The 40.5kV 45pF High Voltage Ceramic Capacitor with Large Cap Terminal is commonly used in:
- High voltage power supplies
- High voltage testing equipment
- Pulse circuits
- High voltage protection systems
- Industrial electronic equipment
- Medical electronic equipment
- Communication equipment
- High frequency circuits
Product Advantages
- Large cap terminal design for improved connection reliability
- Stable electrical characteristics under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good voltage withstand capability
- Suitable for high-voltage applications
- Custom specifications available
