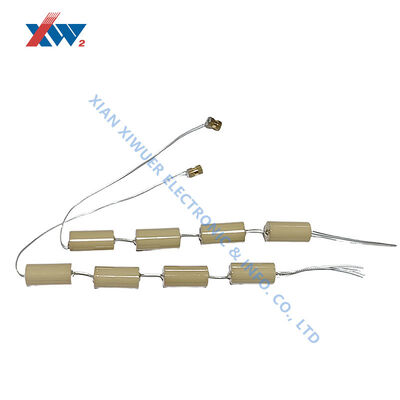

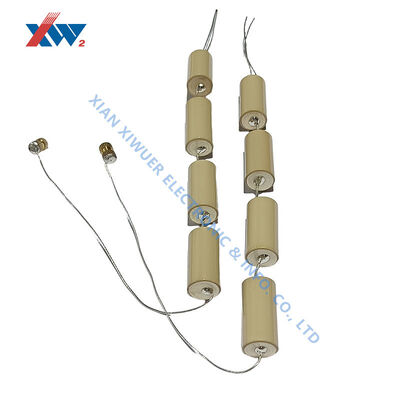

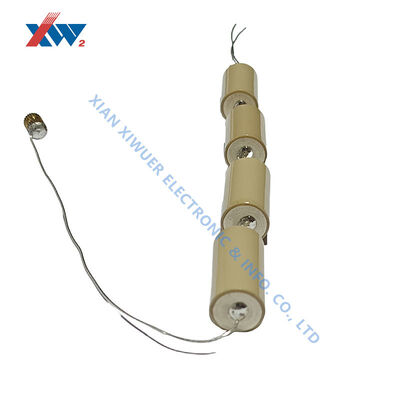

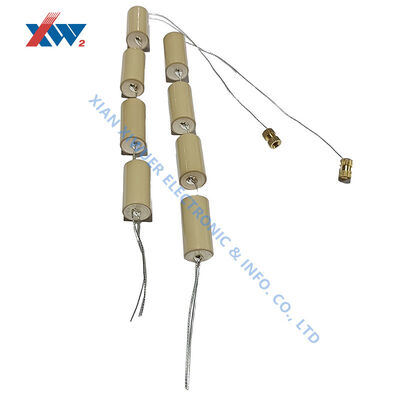

40.5kV 45pF Four Rod Terminal Type High Voltage Ceramic Capacitor
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 40500V DC |
|---|---|---|---|
| Capacitance Value | 45pF | Dielectric Material | Ceramic Dielectric |
| Terminal Type | Four Rod Terminal Type | Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ | Operating Temperature | -25℃ ~ +85℃ |
| Connection Method | Terminal Connection | ||
| Highlight | 40.5kV high voltage ceramic capacitor,four rod terminal ceramic capacitor,45pF high voltage capacitor |
||
Product Description
Product Description
The 40.5kV 45pF Four Rod Terminal Type High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor featuring a four rod terminal structure, developed for applications requiring high voltage capability, stable capacitance, and reliable mechanical connection.
The four rod terminal design provides a stable connection structure and improved mechanical strength, making the capacitor suitable for high-voltage equipment with strict installation requirements. Combined with ceramic dielectric materials and a stable internal structure, it maintains consistent electrical characteristics under high voltage operating conditions.
With a rated voltage of 40.5kV DC (40500V) and a capacitance value of 45pF, this capacitor offers high insulation resistance, low dielectric loss, and good voltage withstand capability for high-voltage and high-frequency applications.
It is commonly used in high voltage power supplies, high voltage testing equipment, pulse circuits, protection systems, and industrial electronic equipment.
Key Features
Four Rod Terminal Structure
Adopts a four rod terminal design to improve mechanical stability and provide a reliable connection structure for high-voltage equipment.
High Voltage Capability
Rated voltage up to 40.5kV DC (40500V), suitable for high-voltage circuits requiring strong insulation performance and stable voltage withstand capability.
Stable Capacitance Performance
The 45pF capacitance value maintains consistent electrical characteristics and supports stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable operation in high-frequency and high-voltage circuits.
High Insulation Resistance
High insulation resistance helps improve electrical stability during long-term operation under high-voltage conditions.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Four Rod Terminal Type High Voltage Ceramic Capacitor |
| Capacitance | 45pF |
| Rated Voltage | 40.5kV DC (40500V) |
| Dielectric Material | Ceramic Dielectric |
| Terminal Structure | Four Rod Terminal Type |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Connection Method | Terminal Connection |
Applications
The 40.5kV 45pF Four Rod Terminal Type High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- High voltage testing equipment
- Pulse circuits
- High voltage protection systems
- Industrial electronic equipment
- Medical electronic equipment
- Communication systems
- High-frequency circuits
Product Advantages
- Four rod terminal structure for improved mechanical stability
- Reliable connection under high-voltage conditions
- Stable capacitance performance
- High insulation resistance
- Low dielectric loss
- Good voltage withstand capability
- Suitable for high-voltage applications
- Custom specifications available
