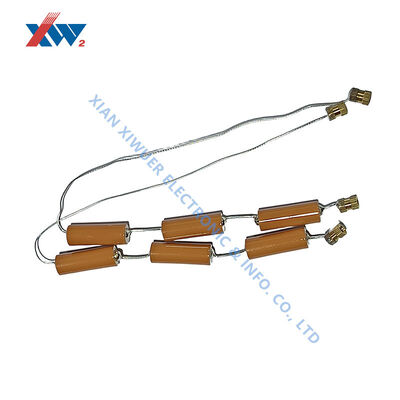

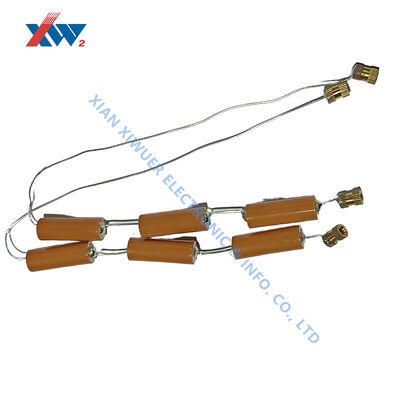

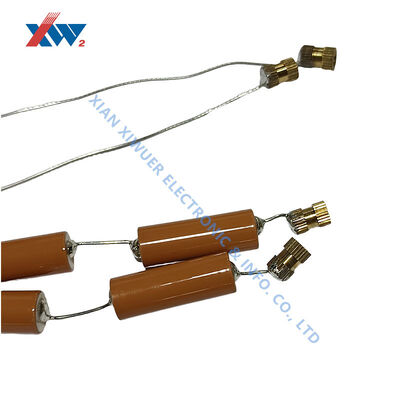

40.5kV 45pF Small Cap Terminal High Voltage Ceramic Capacitor
Product Details
| Capacitor Type | High Voltage Ceramic Capacitor | Rated Voltage | 40500V DC |
|---|---|---|---|
| Capacitance Value | 45pF | Dielectric Material | Ceramic Dielectric |
| Terminal Type | Small Cap Terminal | Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ | Operating Temperature | -25℃ ~ +85℃ |
| Connection Method | Terminal / Soldering | ||
| Highlight | 40.5kV high voltage ceramic capacitor,45pF small cap terminal capacitor,high voltage ceramic capacitor with warranty |
||
Product Description
Product Description
The 40.5kV 45pF Small Cap Terminal High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor featuring a small cap terminal structure, suitable for electronic circuits requiring high voltage capability, stable capacitance, and compact connection design.
The small cap terminal structure provides a compact connection solution while maintaining reliable electrical contact in high-voltage applications. Combined with ceramic dielectric materials and a stable internal structure, the capacitor maintains consistent electrical characteristics under high voltage operating conditions.
With a rated voltage of 40.5kV DC (40500V) and a capacitance value of 45pF, this capacitor offers high insulation resistance, low dielectric loss, and good voltage withstand capability for high-voltage and high-frequency circuit applications.
It is commonly used in high voltage power supplies, high voltage testing equipment, pulse circuits, protection systems, and industrial electronic equipment.
Key Features
Small Cap Terminal Structure
Features a small cap terminal design, providing a compact connection method and flexible installation in high-voltage equipment.
High Voltage Capability
Rated voltage up to 40.5kV DC (40500V), suitable for high-voltage circuits requiring reliable insulation performance and stable voltage withstand capability.
Stable Capacitance Performance
The 45pF capacitance value provides consistent electrical characteristics and supports stable circuit operation.
Low Dielectric Loss
The ceramic dielectric material provides low dielectric loss characteristics, supporting stable performance in high-frequency and high-voltage circuits.
High Insulation Resistance
High insulation resistance helps maintain electrical stability during long-term operation under high-voltage conditions.
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Small Cap Terminal High Voltage Ceramic Capacitor |
| Capacitance | 45pF |
| Rated Voltage | 40.5kV DC (40500V) |
| Dielectric Material | Ceramic Dielectric |
| Terminal Structure | Small Cap Terminal |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | ≥10GΩ (Typical) |
| Operating Temperature | -25℃ to +85℃ |
| Connection Method | Terminal / Soldering |
Applications
The 40.5kV 45pF Small Cap Terminal High Voltage Ceramic Capacitor is commonly used in:
- High voltage power supplies
- High voltage testing equipment
- Pulse circuits
- High voltage protection systems
- Industrial electronic equipment
- Medical electronic equipment
- Communication systems
- High-frequency circuits
Product Advantages
- Small cap terminal structure for compact installation
- Stable electrical performance under high voltage conditions
- High insulation resistance
- Low dielectric loss
- Good voltage withstand capability
- Suitable for high-voltage and high-frequency applications
- Custom specifications available
