Product Description

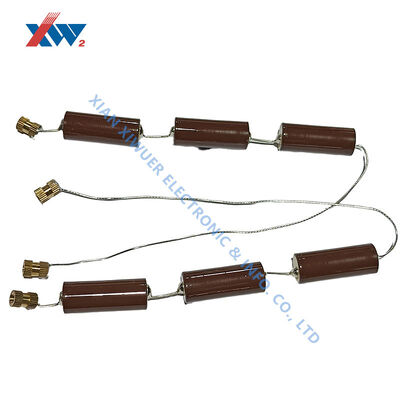

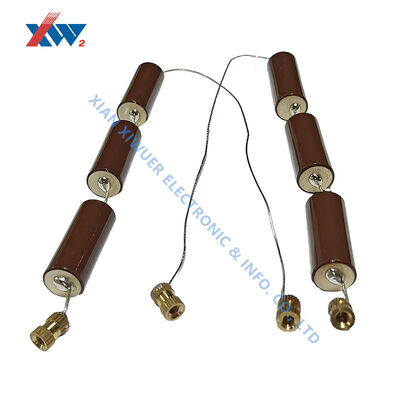

The 40.5kV 110pF High Voltage Ceramic Capacitor is a high-voltage ceramic capacitor used in electronic circuits requiring high voltage capability, stable capacitance, and reliable insulation performance.

The capacitor is manufactured with ceramic dielectric materials and a stable internal structure to maintain consistent electrical characteristics under high voltage operating conditions. It provides low dielectric loss, high insulation resistance, and good voltage withstand capability, making it suitable for high-voltage and high-frequency circuit applications.

With a rated voltage of 40.5kV DC (40500V) and a capacitance value of 110pF, this capacitor is suitable for applications requiring high voltage endurance, stable electrical performance, and long-term operation in demanding environments.

It is commonly used in high voltage power supplies, pulse circuits, protection circuits, industrial electronic equipment, communication systems, and high voltage testing equipment.

Key Features

High Voltage Withstand Capability

Rated voltage up to 40.5kV DC (40500V), suitable for high-voltage circuits requiring reliable insulation performance and strong voltage endurance.

Stable Capacitance Performance

The 110pF capacitance value provides consistent electrical characteristics and helps maintain stable circuit operation.

Low Dielectric Loss

The ceramic dielectric material provides low dielectric loss characteristics, supporting stable operation in high-frequency and high-voltage circuits.

High Insulation Resistance

High insulation resistance helps improve electrical stability and supports continuous operation under high-voltage conditions.

Compact Structure

Compact construction allows flexible integration into high-voltage electronic equipment.

Technical Parameters

Applications

The 40.5kV 110pF High Voltage Ceramic Capacitor is commonly used in:

• High voltage power supplies
• High voltage testing equipment
• Pulse circuits
• High frequency circuits
• Voltage protection systems
• Industrial electronic equipment
• Communication equipment
• Medical electronic devices

Product Advantages

• Stable electrical characteristics under high voltage conditions
• High insulation resistance
• Low dielectric loss
• Good high-frequency performance
• Strong voltage withstand capability
• Compact structure
• Long service life
• Custom specifications available
