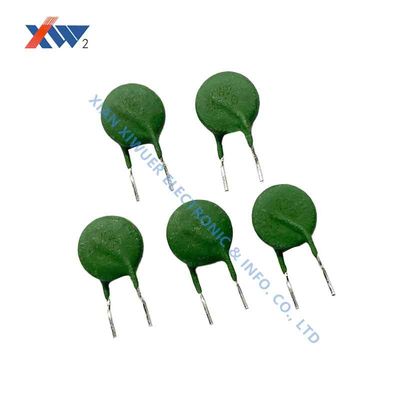

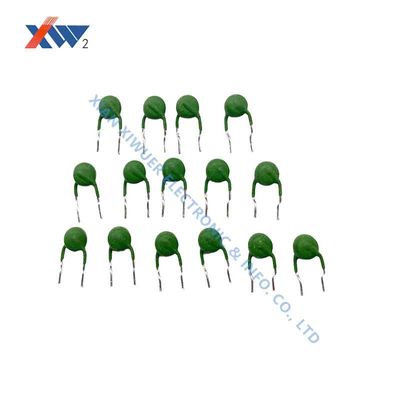

5D-7 Power Type NTC Thermistor Suppress Electronic Circuit Surge Current Generated
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| R25(Ω) | 5 | Max.steady State Current | 1A |
|---|---|---|---|
| Residual Resistance | 0.35(Ω) | Dissipation Factor | 6 Mw/℃ |
| Themal Time Constant | 20s | ||
| Highlight | Power Type NTC Thermistor,5D-7 NTC Thermistor,Suppress Surge Current Thermal NTC Resistor |
||
Product Description
5D-7 power type NTC thermistor suppress the surge current generated by the electronic circuit at the moment of power-on
Features
- Small size, high power, strong ability to suppress surge current
- Complete series, wide working range (-40~+200°C)
- Fast response, capable of detecting temperature changes of 10-6°C
Dimension
| Model | Dmax | Tmax | Φd±0.1 | F1±1 | F2±1.5 | L | Lead length | |
| L1±1 | L2±1 | |||||||
| XD-5 | 7 | 5 | 0.55 | 5 | 3 | 3.0 ~20 | 3.0~20 | 7/4 |
