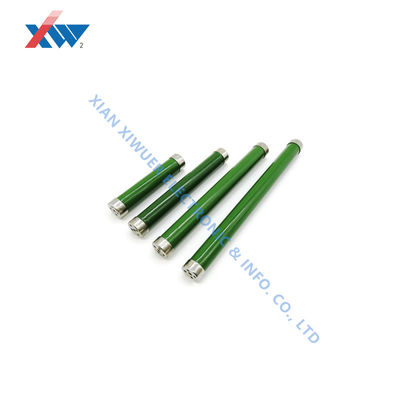

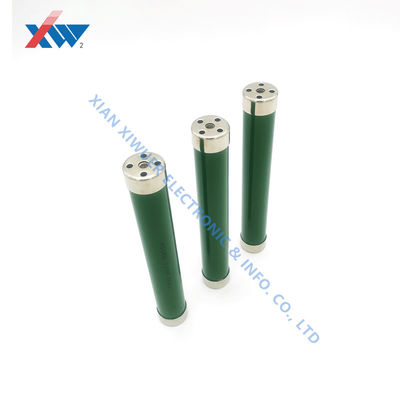

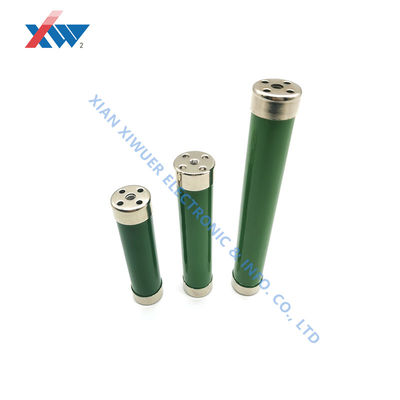

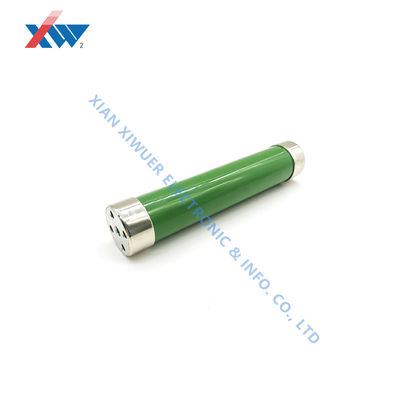

High Voltage Glass Glaze Thick Film Resistor 150W 5K1 J RIG8B Variable Frequency Dummy Load Resistor

RIG8B 150W 5K1 J high-voltage resistor spot glass glaze thick film resistor variable frequency dummy load resistor

RIG8B is designed for use in high-power applications. wide ohmic range, precise tolerance and temperature coefficient values as well as high dielectric strength capability are only some of the features of this resistor series. There is also an option for voltage dividers

Features

• Non Inductive Design
• Thick Film Technology
• Low TCR
• Tolerance as low as ±0.5% to± 5%

Application

• Instrumentation
• Medical (X-Ray)
• Power Supply
• Motor Drives & Controls
• Converter
•  Smart Grid Sensing / Metering

Technical Parameter

Contour Drawing

Power Derating Curve

​
