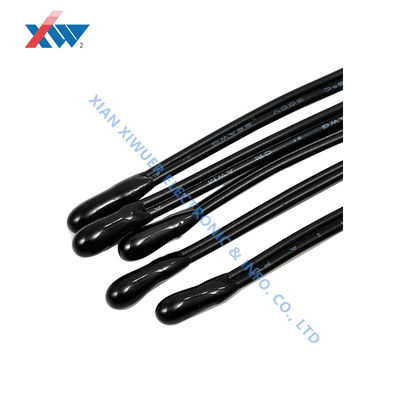

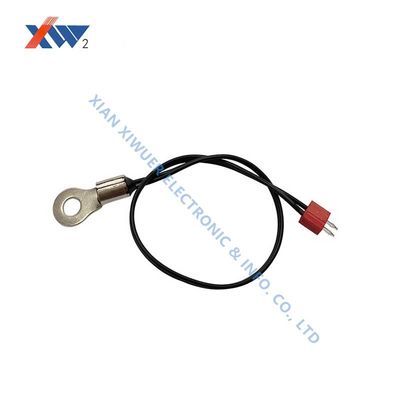

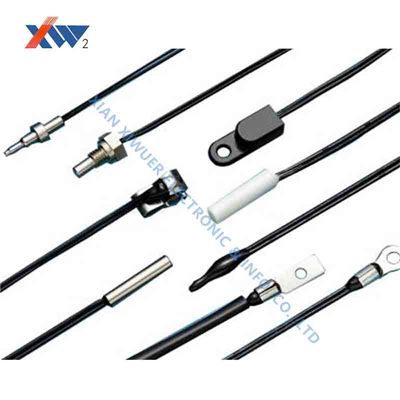

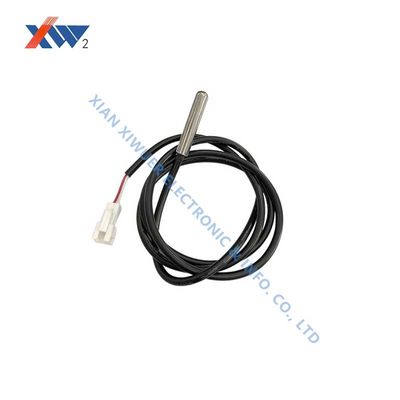

Waterproof NTC Temperature Probe Sensor For High-precision Temperature Measurement 2.75kΩ B3854K
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Resistance | 2.75± 3.8% | Bvalue | 3854± 1.5% |
|---|---|---|---|
| Time Constant | Approx 4.0 Sec | Dsisipation Factor | Approx 2.0 MW/℃ |
| Insulation Resistance | ≥100MΩ | Application | Smart Home Appliances |
| Highlight | High Precision NTC temperature probe sensor,Waterproof NTC temperature probe sensor,2.75kΩ NTC temperature probe sensor |
||
Product Description
Waterproof NTC temperature probe sensor for high-precision temperature measurement 2.75kΩ B3854K
Features
- Waterproof and Moisture
- High/low temperature resistance, corrosion resistance, etc.
- High measurement accuracy
- Stable performance
- Quality assurance
Application
- Food temperature measurement
- Smart home appliances, agriculture, industry, etc.,
Technical Parameter
|
项目 Item |
代号 Code |
测试条件 Test condition |
性能要求 Performance requirements |
单位 Unit |
|
标 称 阻 值(Rated resistance) |
R25℃ |
0℃±0.05℃ 25℃±0.05℃ PT≤0.1mW |
9± 2% 2.75± 3.8% |
kΩ |
|
材料常数(Bvalue) |
B0/25 |
+0℃±0.05℃, +25℃±0.05℃ |
3854± 1.5% | K |
|
时间常数( Time constant) |
τ | 静止空气中 In still air | Approx 4.0 | Sec |
|
耗散系数( Dsisipation factor) |
δ | 静止空气中 In still air | Approx 2.0 | mW/℃ |
|
最大功率(Max.Power) |
Pmax | 静止空气中 In still air | Approx 50 | mW |
|
耐电压 (Withstand voltage) |
Hi-pot |
静止空气中 AC500V 1mA 0.3s In still air |
无击穿或飞弧 No break down |
V |
|
绝缘电阻 (Insulation resistance) |
R |
静止空气中 DC500V In still air |
≥100 |
MΩ |
|
使用温度范围 (Operating Temp. Range) |
OTR |
静止空气中 In still air |
-40～+125 | ℃ |
Size Drawing
